Repair Procedures: Replacement

Remove the center pillar lower trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")
Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")

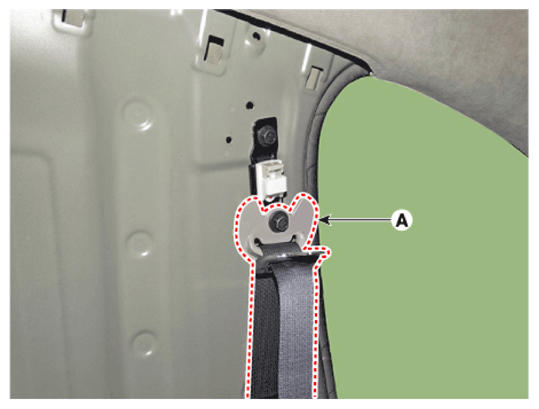

After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

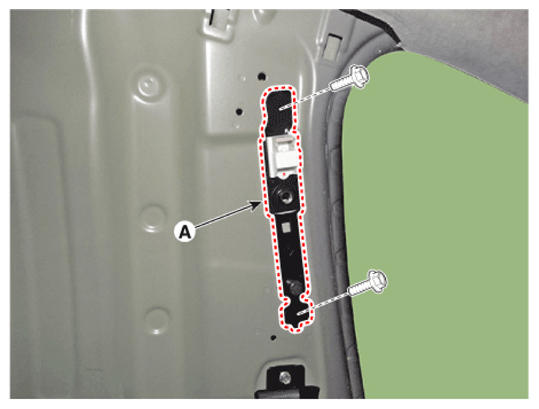

After loosening the mounting bolts, remove the height adjustor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips.
