Bank 1
WARNING:
- DON'T remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the intake hose.
(Refer to Engine Mechanical System - "Removal And Installation ")
- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then vertically remove the sensor from the cylinder head.

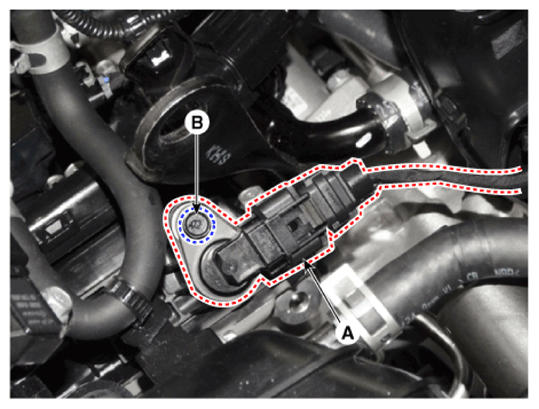

[Bank 1/Intake]

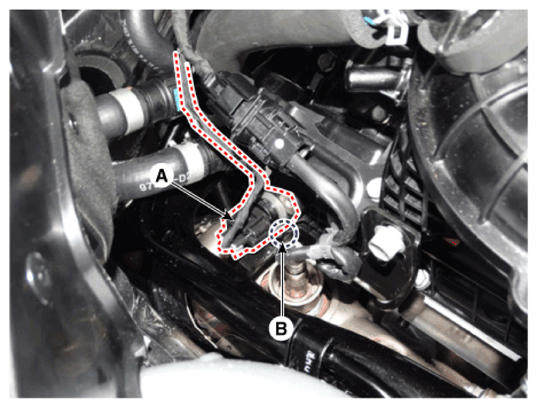

[Bank 1/Exhaust]
