Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear transverse trim.

    (Refer to Body - "Rear Transverse Trim ")

  3. Remove the luggage side trim.

    (Refer to Body - "LUGGAGE SIDE TRIM ")

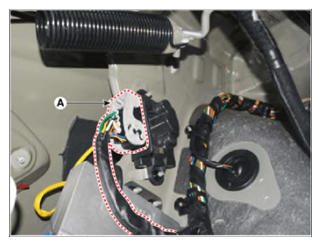

  4. Disconnect the fuel pump control module connector (A).
    G15591653Courtesy of HYUNDAI MOTOR AMERICA

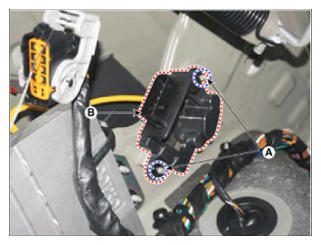

  5. Remove the mounting nuts (A), and then remove the fuel pump control module (B) from the vehicle.
    G15591654Courtesy of HYUNDAI MOTOR AMERICA
