Bank 2/Exhaust

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the engine and transaxle assembly.

    (Refer to Engine Mechanical System - "ENGINE AND TRANSMISSION ASSEMBLY ")

  3. Remove the oil level gauge & pipe.

    (Refer to Engine Mechanical System - "OIL LEVEL GAUGE AND PIPE ")

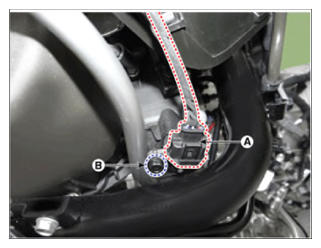

  4. Disconnect the camshaft position sensor connector (A).
  5. Remove the camshaft position sensor after loosening the mounting bolt (B).
G15591450Courtesy of HYUNDAI MOTOR AMERICA
