Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
    CAUTION:
    • Wait at least 30 seconds after separating the cable.

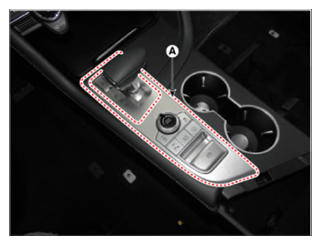

  2. Using the screw or remover, remove the console upper cover (A).
    G15589087Courtesy of HYUNDAI MOTOR AMERICA

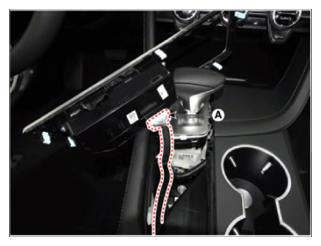

  3. Disconnect the connector (A).
    G15589088Courtesy of HYUNDAI MOTOR AMERICA

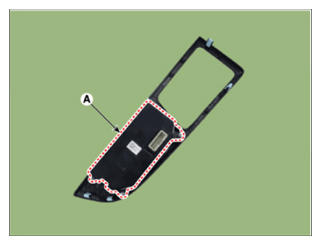

  4. Disconnect the screw and then ESP OFF switch (A).
    G15589089Courtesy of HYUNDAI MOTOR AMERICA

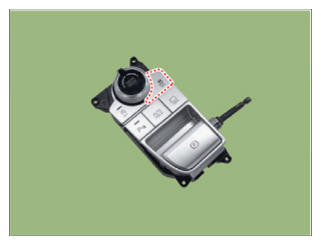

    G15589090Courtesy of HYUNDAI MOTOR AMERICA
