Variable Force Solenoid (VFS) (Intake)

[Bank 1]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the VFS connector (A).
  3. Remove the mounting bolts (B), and then remove the VFS from the engine.

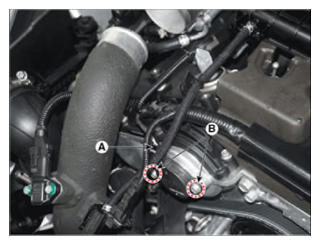

G15591518Courtesy of HYUNDAI MOTOR AMERICA

[Bank 2]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the VFS connector (A).
  3. Remove the mounting bolts (B), and then remove the VFS from the engine.

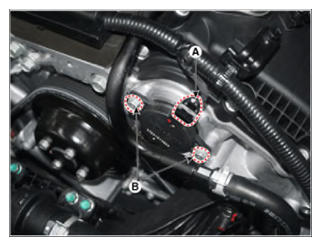

G15591519Courtesy of HYUNDAI MOTOR AMERICA
