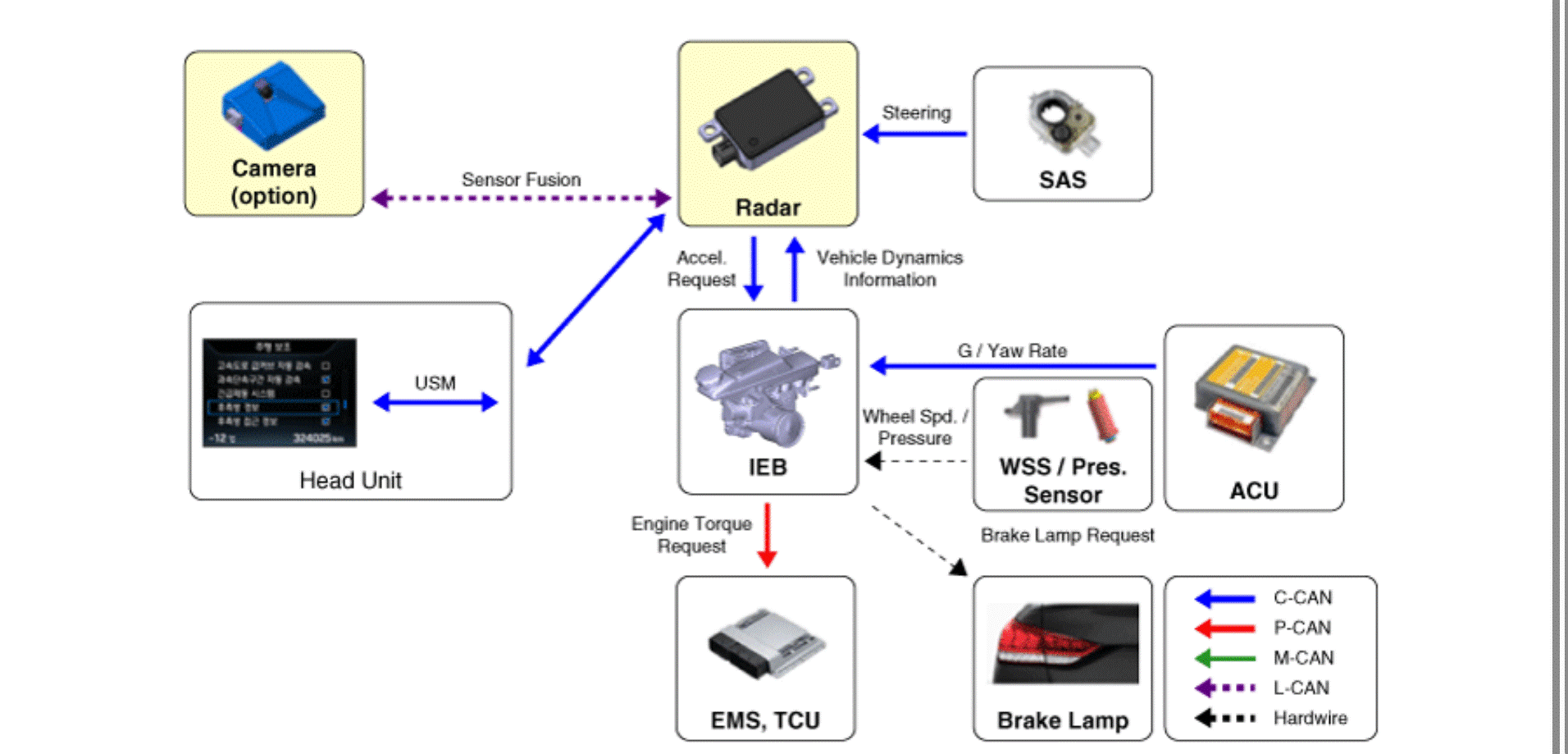

System Flow
Information
- Radar, Camera: Detection device (radar and camera) that can recognize potential obstacles in the front.
- Cluster: Human-Machine Interface (HMI) to warn driver or change settings.
- ESC: Braking system to automatically brake the car
- Sensors: FCA, contrary to FCA (Smart Cruise Control), has to work on a stationary car so the system uses the Fusion Target system to combine radar with camera.
