Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

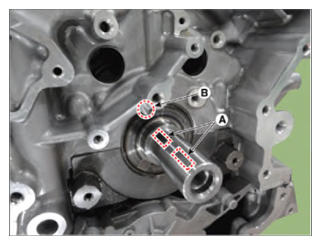

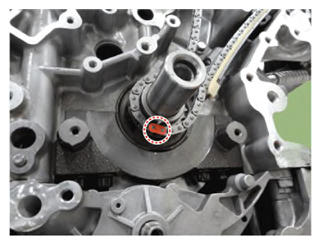

The key (A) of crankshaft should be aligned with the timing mark (B) of block. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.

Courtesy of HYUNDAI MOTOR AMERICA

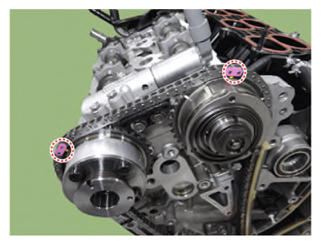

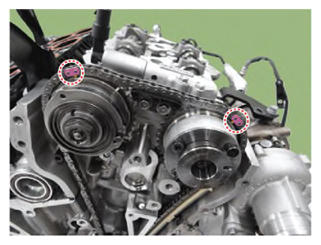

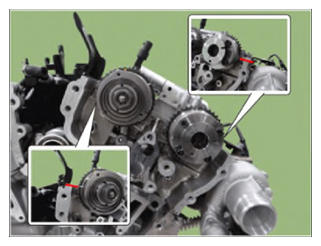

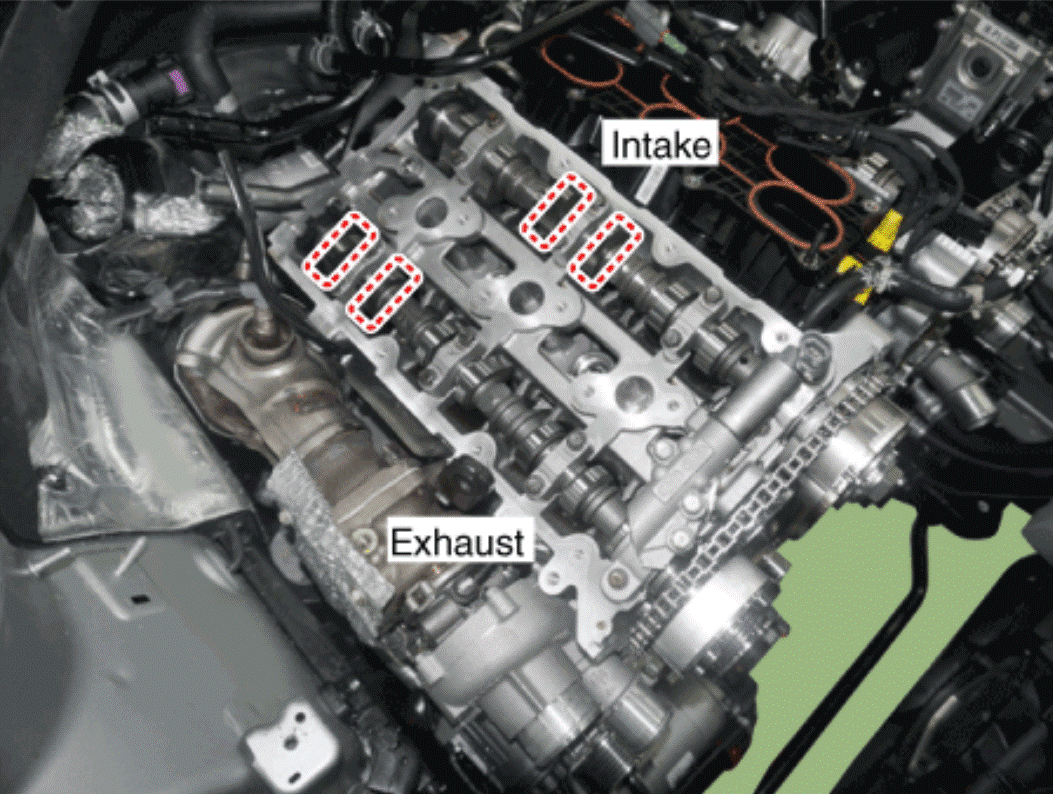

Align the mark of the exhaust camshaft sprocket and intake CVVT on the top surface of cylinder head. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

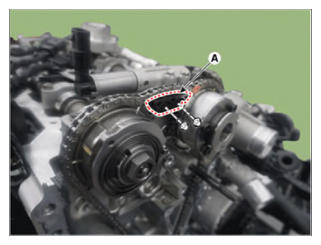

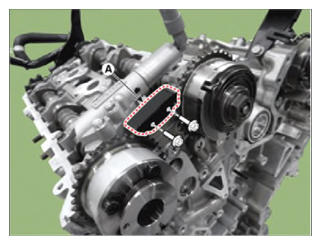

Install the LH timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

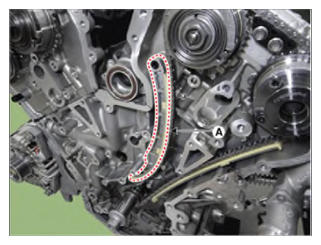

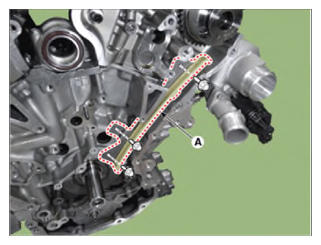

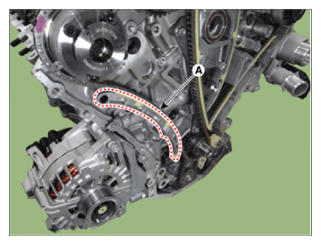

Install the LH timing chain guide (A).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

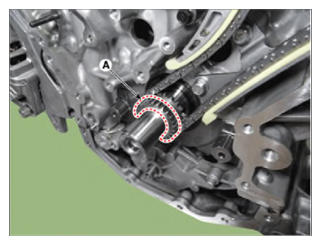

Install the crankshaft LH timing chain sprocket (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below:
  Crankshaft sprocket → Timing chain guide → Exhaust CVVT sprocket → Intake CVVT sprocket.

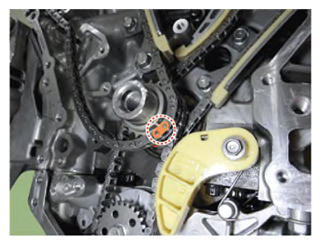

- When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install the LH timing chain tensioner arm (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the LH timing chain tensioner adapter (A).

Courtesy of HYUNDAI MOTOR AMERICA

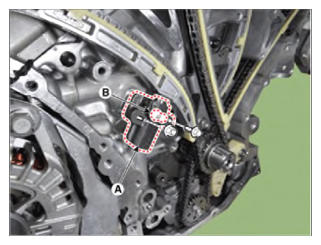

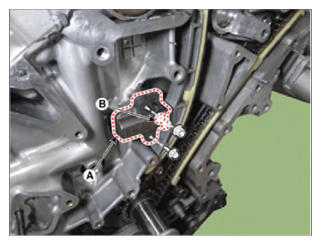

Install the LH timing chain tensioner (A) and then remove the stopper pin (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

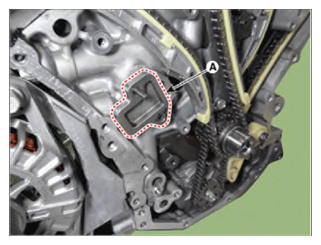

Install the crankshaft oil pump sprocket (A).

Courtesy of HYUNDAI MOTOR AMERICA

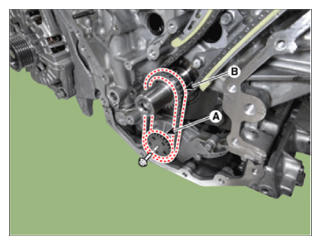

Install the oil pump chain sprocket (A) and oil pump chain (B).
Tightening torque:

19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

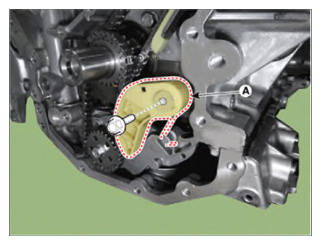

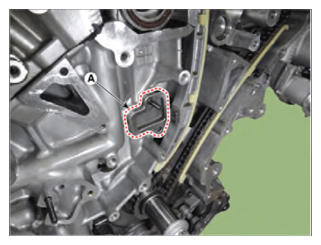

Install the oil pump chain tensioner (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

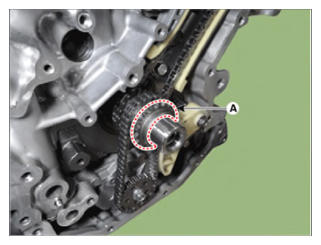

Install the crankshaft RH timing chain sprocket (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the RH timing chain cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

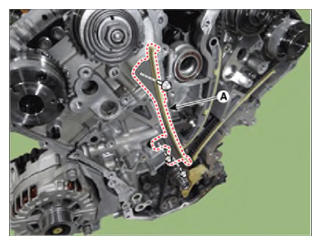

Remove the RH timing chain guide (A).
Tightening torque

19.6 - 24.5 N.m (2.0-2.5 kgf.m, 14.5-18.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

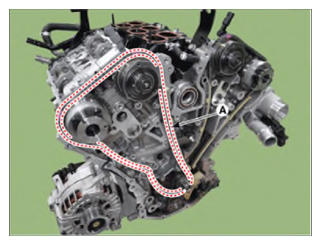

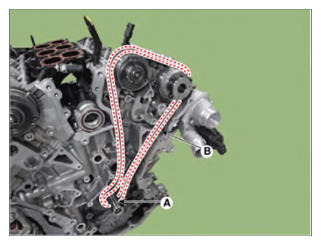

Install the RH timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- To install the timing chain with no slack between each shaft (cam, crank), follow the procedure below: Crankshaft sprocket → Timing chain guide → Exhaust CVVT sprocket → Intake CVVT sprocket.
- When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Install the RH timing chain tensioner arm (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install the RH timing chain tensioner adapter (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install the RH timing chain tensioner (A) and then remove the stopper pin (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
After rotating the crankshaft 2 revolutions in regular direction (clockwise viewed from front), confirm the timing mark.
NOTE:
- Always turn the crankshaft clockwise.
- Turning the crankshaft counterclockwise before building up oil pressure in the hydraulic timing chain tensioner may result in the chain disengagement from the sprocket teeth.
Install the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
NOTE:
- Refill engine oil.
- Clean the battery posts and cable terminals with sandpaper. Assemble and then apply grease to prevent corrosion.
- Inspect for fuel leakage.
  - After assembling the fuel line, turn on the ignition switch (without operating the starter) so that the fuel pump runs for approximately two seconds and fuel line pressurizes.
  - Repeat this operation two to three times, and then check for fuel leakage at any point on the fuel lines.
- Refill radiator and reservoir tank with engine coolant.
- Bleed air from the cooling system.
  - Start engine and let it run until it warms up (until the radiator fan operates 3 or 4 times).
  - Turn off the engine and let it cool down. Check the level in the radiator, and add coolant if needed. This will allow trapped air to be released from the cooling system.
  - Put radiator cap on tightly, then run the engine again and check for leaks.
