Repair Procedures: Removal

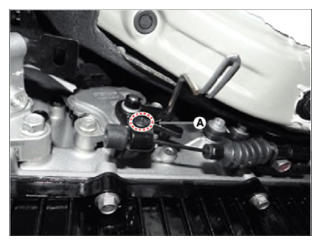

  1. Remove the fastener (A) and then removing the parking cable from the parking release lever.
    G15587413Courtesy of HYUNDAI MOTOR AMERICA

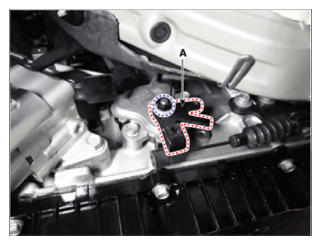

  2. Remove the parking release lever (A) after loosening the nut.
    G15587414Courtesy of HYUNDAI MOTOR AMERICA

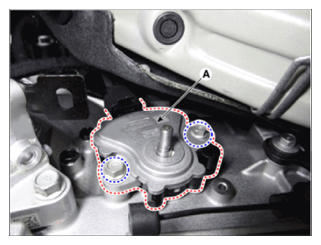

  3. Remove the parking switch (A) after loosening the bolts.
    G15587415Courtesy of HYUNDAI MOTOR AMERICA

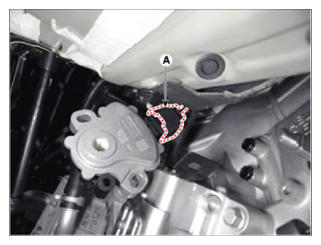

  4. Disconnect the parking switch connector (A).
G15587416Courtesy of HYUNDAI MOTOR AMERICA
