Body G-sensor: Rear
CAUTION:
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor undercover, fuel filter, fuel tank, canister). (Refer to General Information - "LIFT AND SUPPORT POINTS ")
- Loosen the rear wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the rear wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the Rear wheel guard.
(Refer to Body - "REAR WHEEL GUARD ")

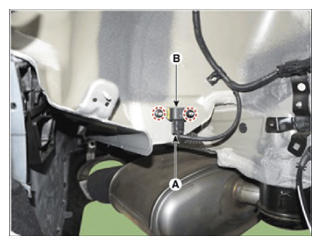

- Disconnect the ECS-G sensor connector (A).
- Loosen the nut and then ECS-G sensor (B).
[Rear Right]
