Body G-sensor: Front
CAUTION:
- When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister). (Refer to General Information - " LIFT AND SUPPORT POINTS ")
- Loosen the front wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
- Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")
- Remove the front wheel guard.
(Refer to Body - "FRONT WHEEL GUARD ")
- Disconnect the ECS-G sensor connector (A).
- Loosen the nut and then ECS-G sensor (B).

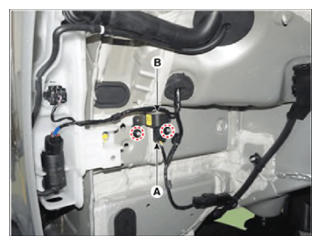

[Front Left]

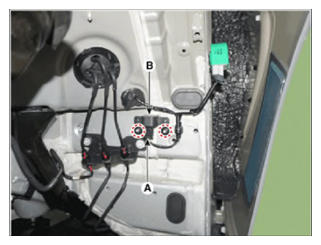

[Front Right]
