Repair Procedures: Disassembly

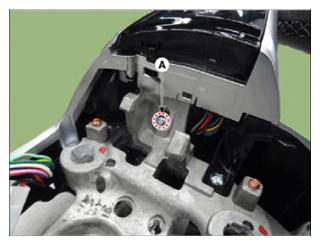

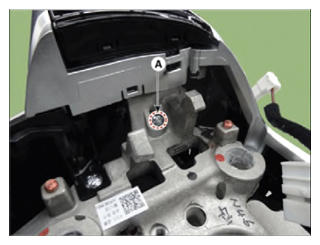

  1. Loosen the paddle shift switch mounting screw (A).
    G15588694Courtesy of HYUNDAI MOTOR AMERICA
    G15588695Courtesy of HYUNDAI MOTOR AMERICA

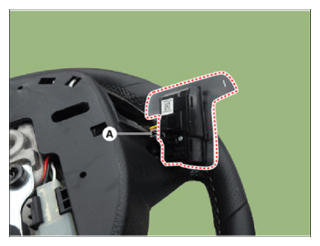

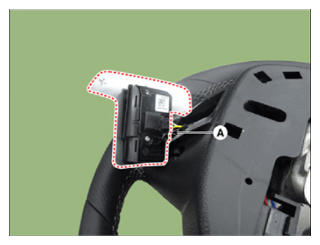

  2. Remove the paddle shift (A) after disconnecting the connector.
    G15588696Courtesy of HYUNDAI MOTOR AMERICA
    G15588697Courtesy of HYUNDAI MOTOR AMERICA

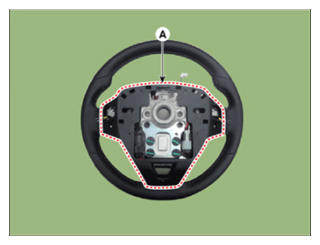

  3. Remove the lower cover (A) after loosening the screw.
    G15588698Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the wiring.

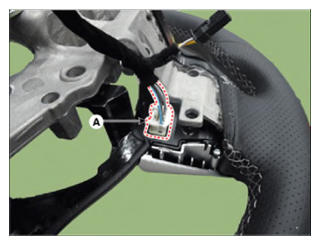

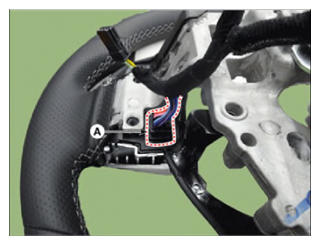

    1. Disconnect the remote control switch connector (A).
      G15588699Courtesy of HYUNDAI MOTOR AMERICA
      G15588700Courtesy of HYUNDAI MOTOR AMERICA

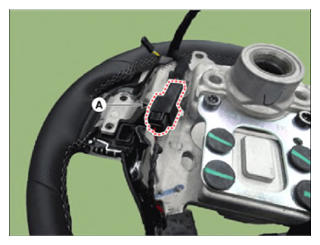

    2. Disconnect the haptic motor connector (A).
      G15588701Courtesy of HYUNDAI MOTOR AMERICA

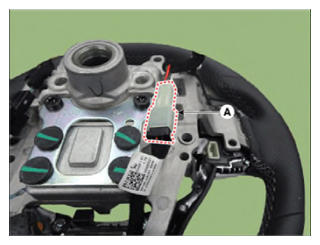

    3. Disconnect the heated steering wheel connector (A).
      G15588702Courtesy of HYUNDAI MOTOR AMERICA

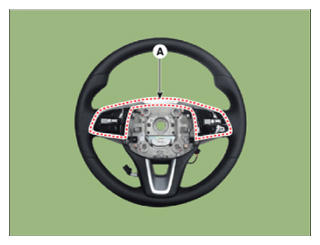

  5. Remove the remote control switch (A).
    G15588703Courtesy of HYUNDAI MOTOR AMERICA

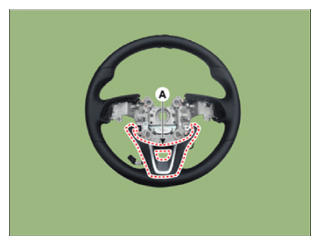

  6. Remove the upper cover (A).
    G15588704Courtesy of HYUNDAI MOTOR AMERICA

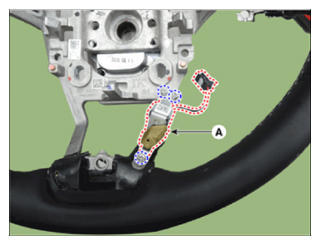

  7. Remove the haptic motor (A) after loosening the screws.
    G15588705Courtesy of HYUNDAI MOTOR AMERICA

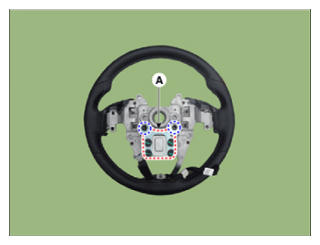

  8. Remove the steering wheel damper (A) after loosening the mounting bolts.
    G15588706Courtesy of HYUNDAI MOTOR AMERICA
