Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the crash pad lower panel. (Refer to Body - "CRASH PAD LOWER PANEL ")

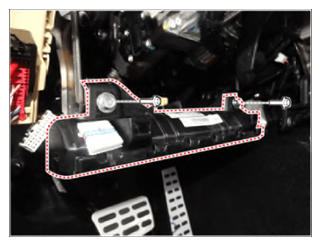

  3. Remove the Mounting bolts.
    G15588821Courtesy of HYUNDAI MOTOR AMERICA

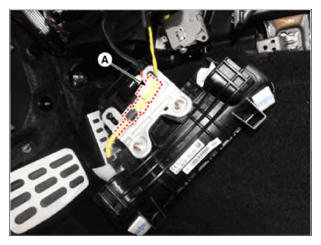

  4. Disconnect the knee airbag connector (A).
    G15588822Courtesy of HYUNDAI MOTOR AMERICA

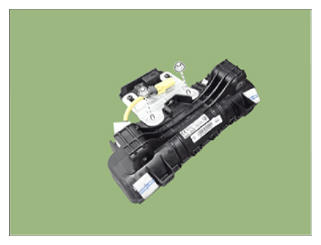

  5. Remove the knee air bag module bracket by loosening the screws.
    G15588823Courtesy of HYUNDAI MOTOR AMERICA
