Clock Spring

  1. If any improper parts are found during inspection, replace the clock spring with a new one.
  2. Check connectors and protective tube for damage, and terminals for deformities.

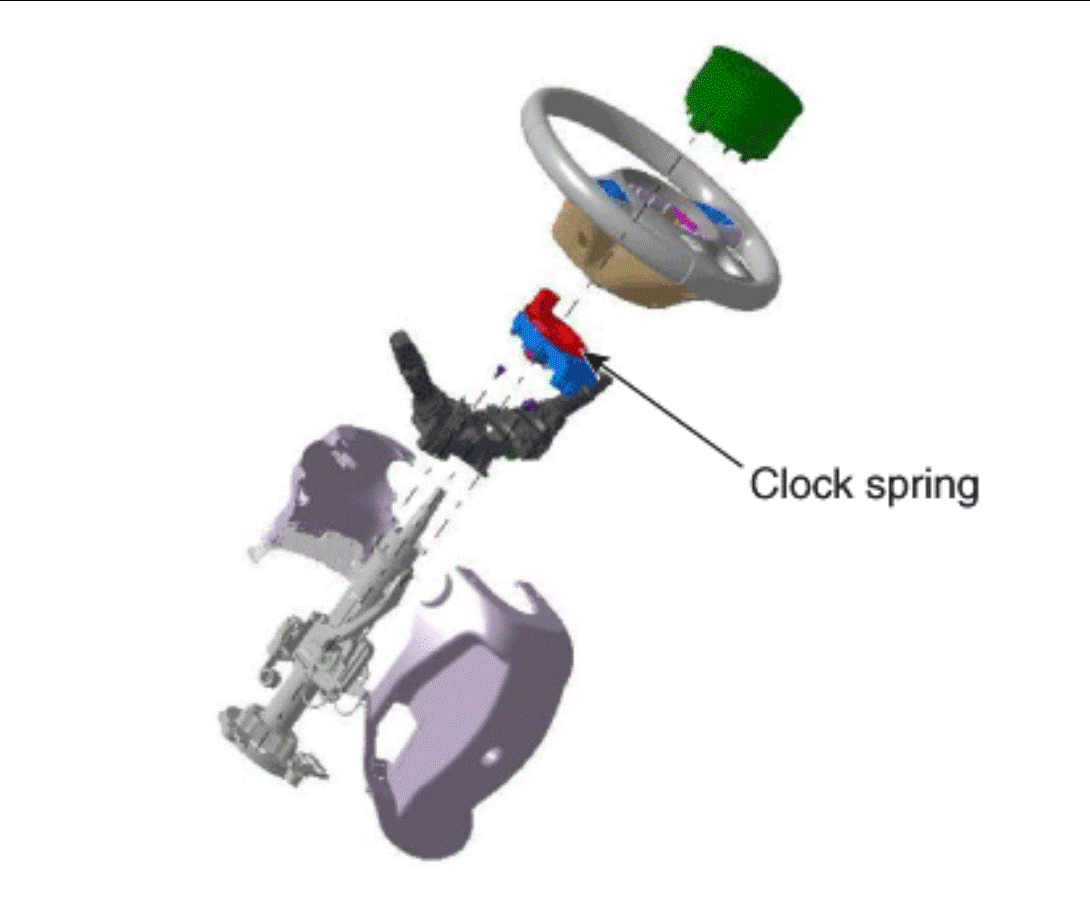

    G15588802Courtesy of HYUNDAI MOTOR AMERICA

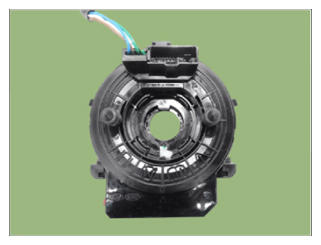

    G15588803Courtesy of HYUNDAI MOTOR AMERICA
