Test For Changing Position Of Each Ignition Coil

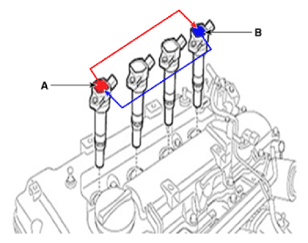

  1. Ignition coil w/misfire code
  2. Ignition coil w/o misfire code
    NOTE:
    • Do not move with spark plug at the same time (move the ignition coil only)
    G15586599Courtesy of HYUNDAI MOTOR AMERICA

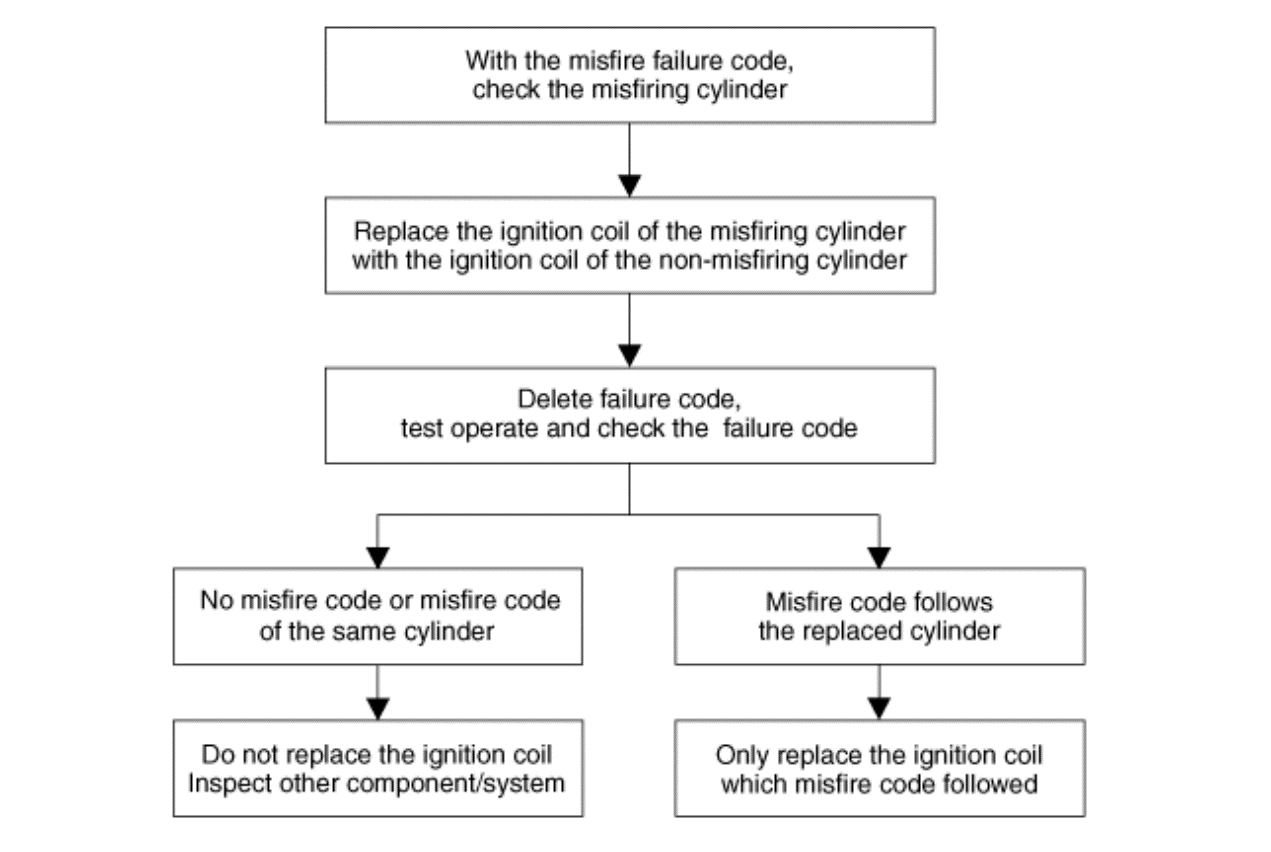

    G15586600Courtesy of HYUNDAI MOTOR AMERICA
