Repair Procedures: Removal: AWD

CAUTION:

When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).

(Refer to General Information - "LIFT AND SUPPORT POINTS ")

Loosen the front wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
Remove the brake caliper.
(Refer to Brake System - "FRONT DISC BRAKE ")
Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

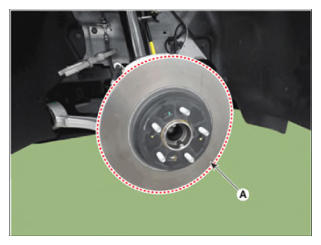

Loosen the screw and then removing the front brake disc (A).
Tightening torque:

4.9 - 5.8 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

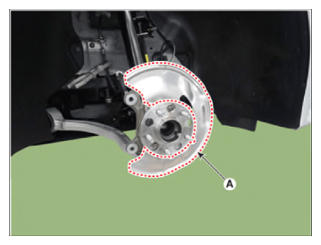

Loosen the dust cover bolts and then removing the dust cover (A).
Tightening torque:

10.8 - 12.7 N.m (1.1 - 1.3 kgf.m, 8.0 - 9.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

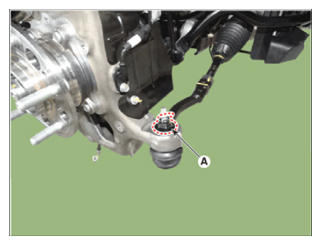

Remove the compression arm pin and tie rod end ball joint nut (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

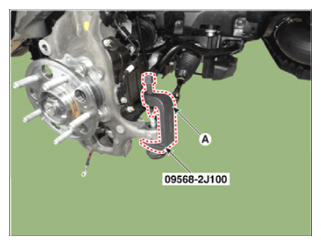

Remove the tie rod end ball joint (A) from the knuckle by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

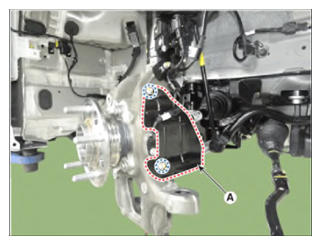

Loosen the bolts and then removing the brake cooling cover (A)
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

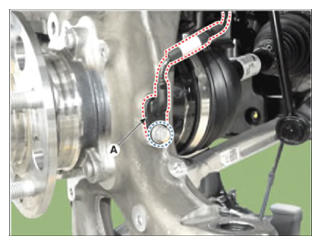

Loosen the wheel speed sensor bolt and then removing the wheel speed sensor (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

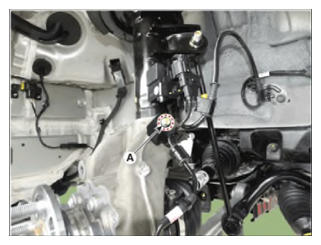

Remove the wheel speed sensor bracket bolt (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 7.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

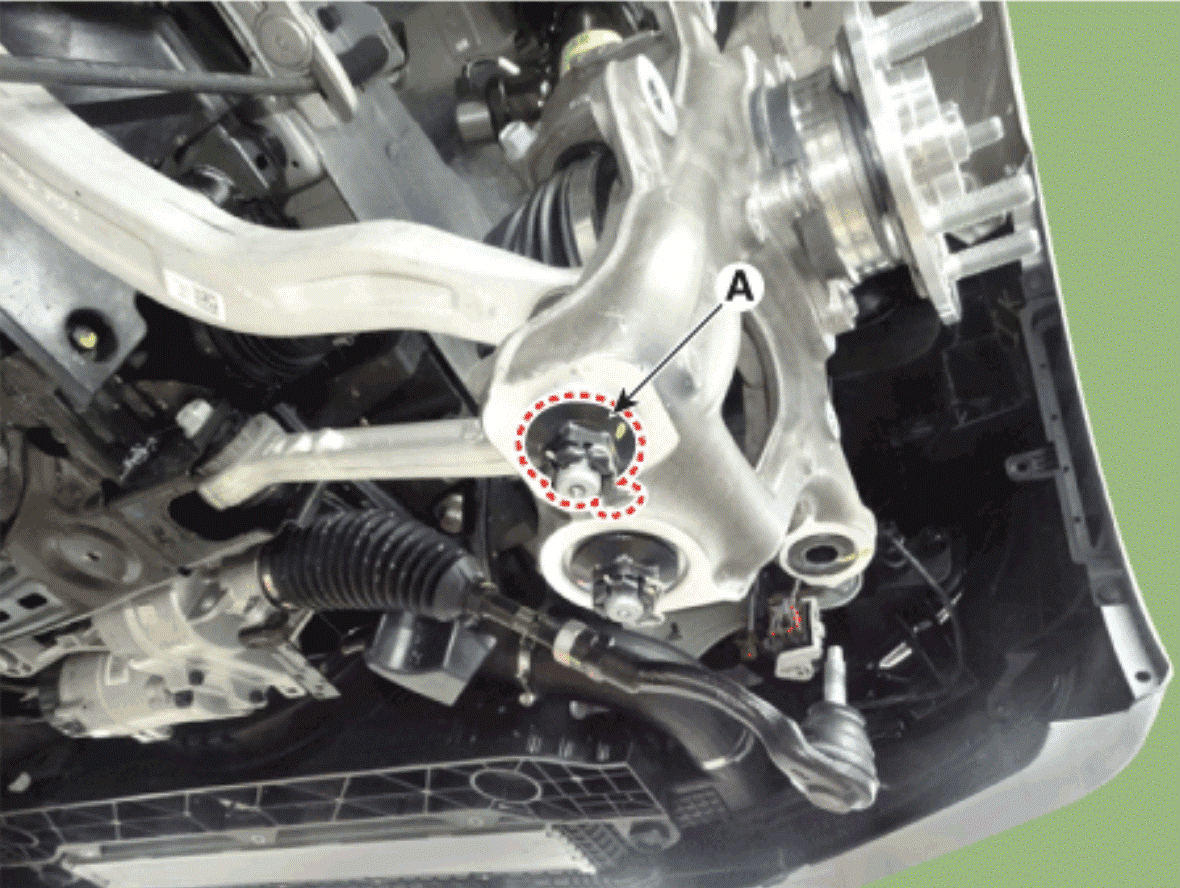

Remove the tension arm pin and castle nut (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

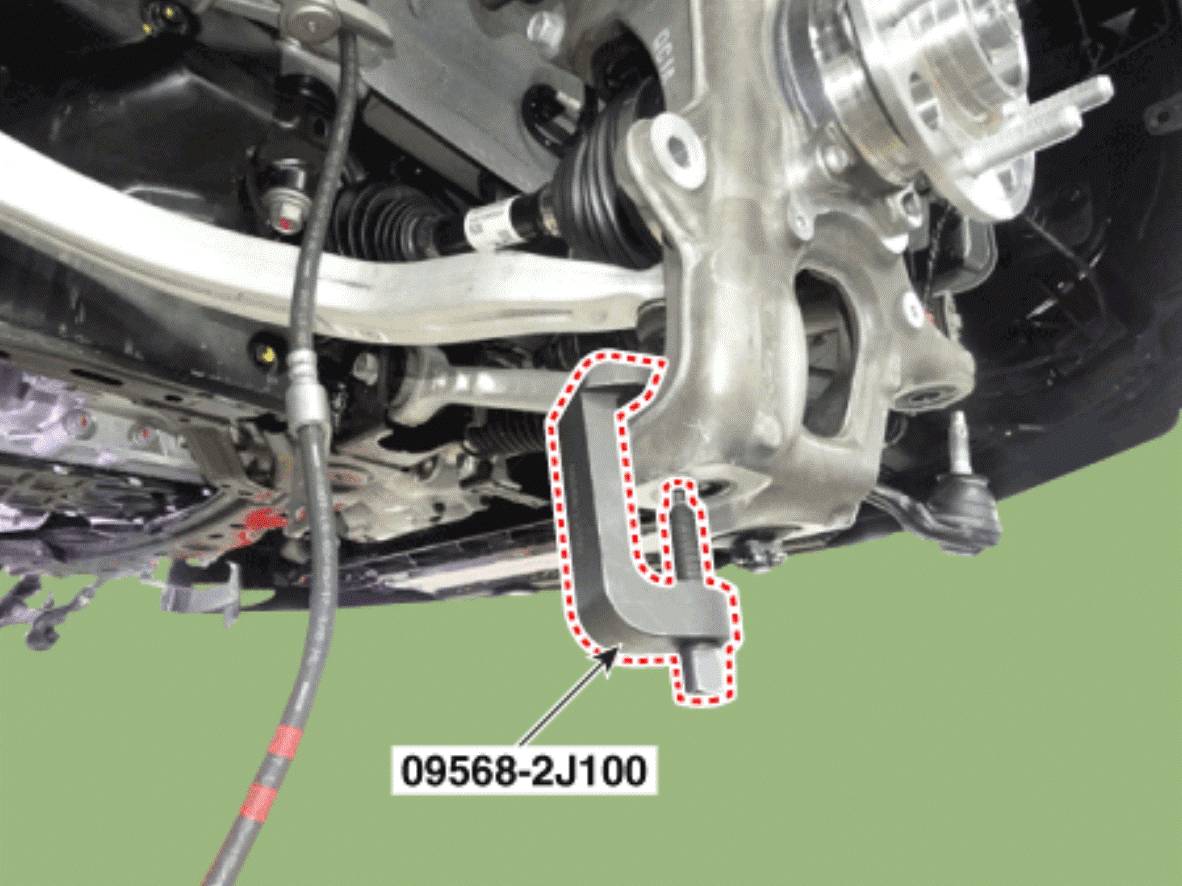

Remove the tension arm from the knuckle by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the lateral arm pin and castle nut (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

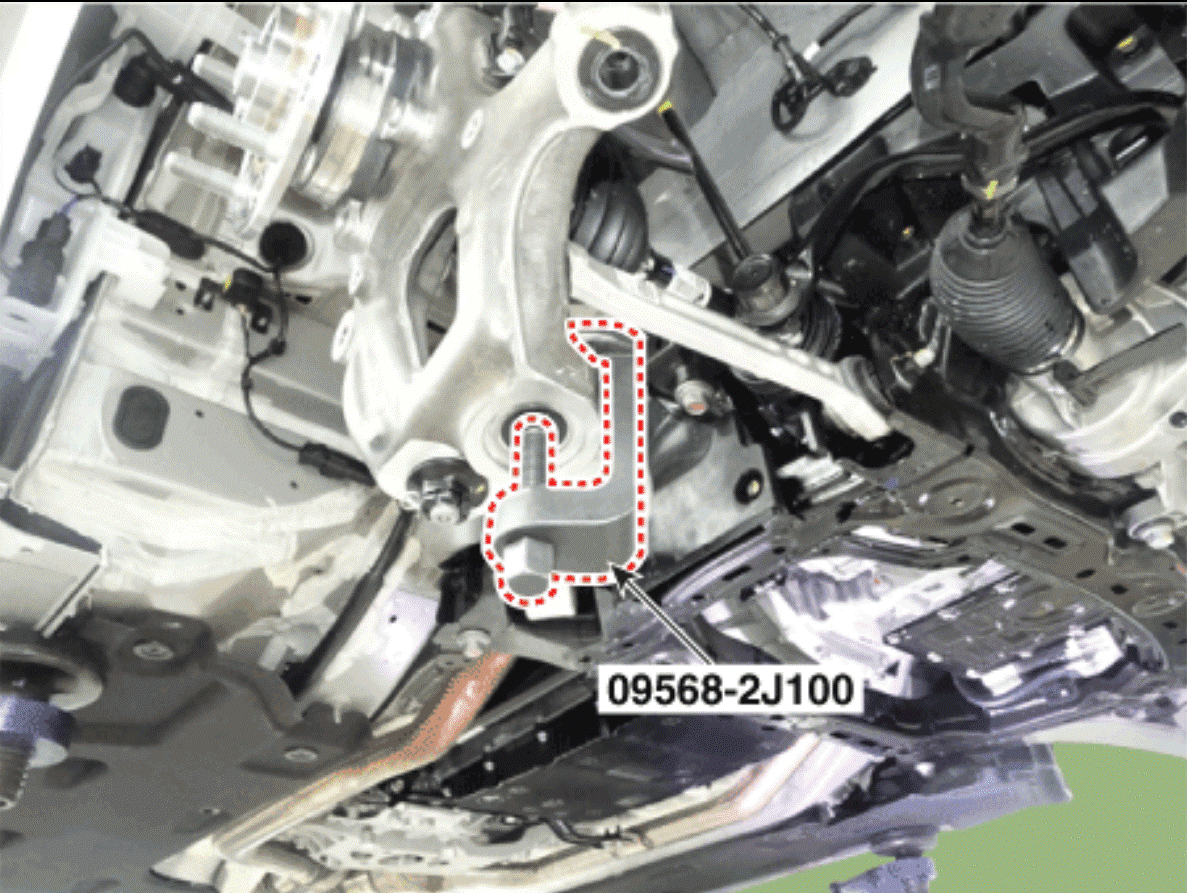

Remove the lateral arm from the knuckle by using the SST (09568-2J100).

Courtesy of HYUNDAI MOTOR AMERICA

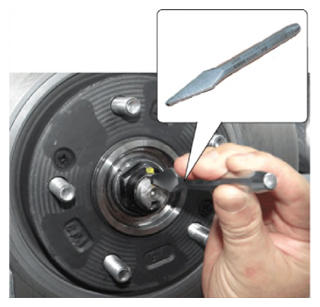

By hammering on a chisel, unlock the driveshaft lock hub nut caulking.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If there is screw thread (A) on the end of the nut, unlock the caulking by using a chisel and then loosen the nut to prevent damaging driveshaft screw thread.
Courtesy of HYUNDAI MOTOR AMERICA

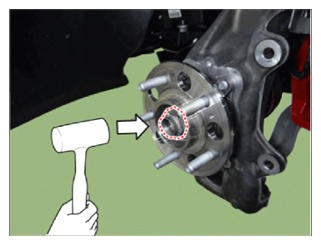

Loosen the caulking nut from the driveshaft and then separate the drive shaft from the hub assembly by using the plastic hammer.

Tightening torque:

294.2 - 313.8 N.m (30.0 - 32.0 kgf.m, 217.0 - 231.5 lb-ft)

G15588223

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When removing the drive shaft, use a plastic hammer in order to avoid shock applied to the axle.
When removing the drive shaft, do not forcibly pull or excessively bend the axle to separate.

NOTE:

The driveshaft lock nut must be replaced with new one.

G15588224

Courtesy of HYUNDAI MOTOR AMERICA

When replacing the drive lock hub nut, use only the nut with screw thread (A) on the end.

G15588225

Courtesy of HYUNDAI MOTOR AMERICA

Tighten the driveshaft lock hub nut to the specified tightening torque, and caulk by using a chisel and hammer.
If there are two key seats, perform on all two seats.

Caulking depth (A): 1.5 mm (0.0591 in)

G15588226

Courtesy of HYUNDAI MOTOR AMERICA

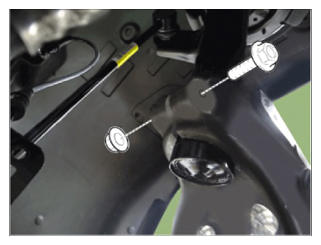

Remove the knuckle upper bolt and nut.
Tightening torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

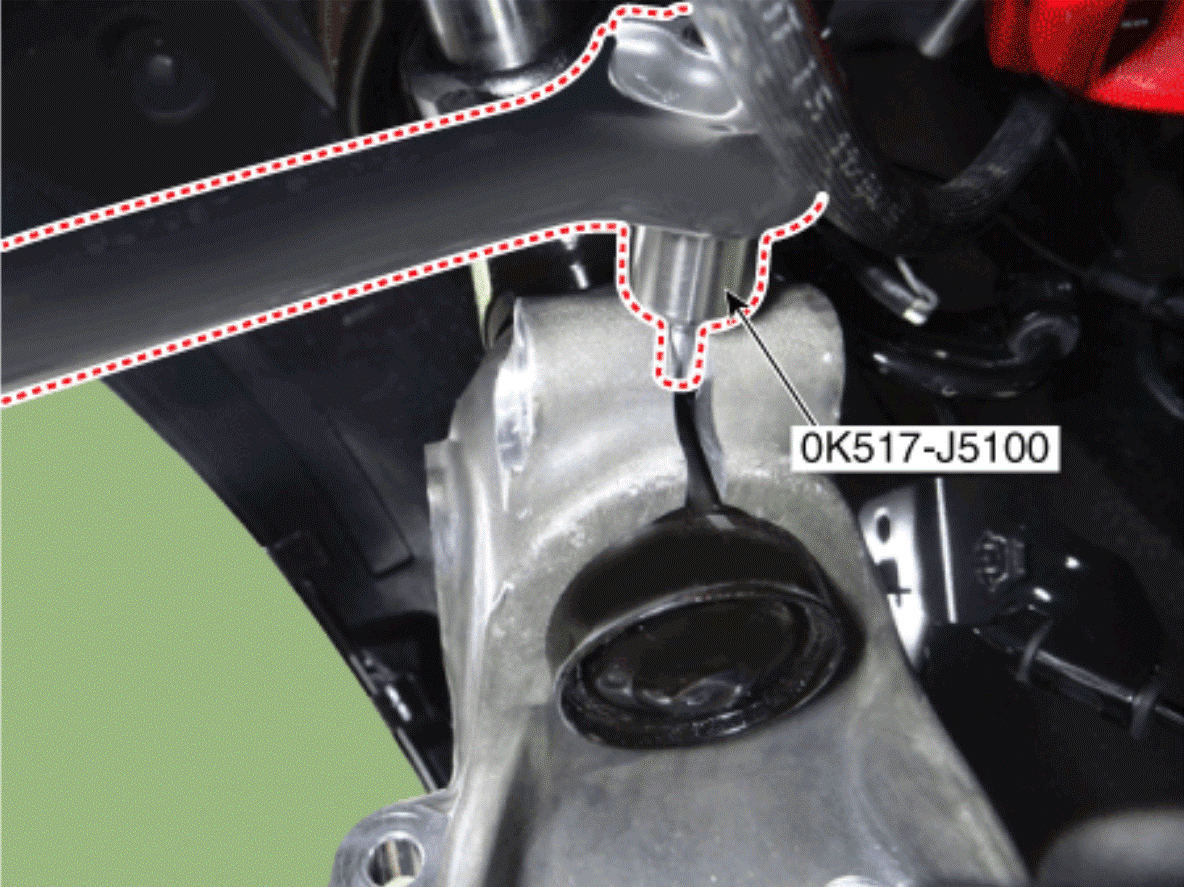

Remove the knuckle by using the SST (0K517-J5100).
Reference value: Below 8.0 mm (0.31 in.)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to exceed 8 mm (0.31 in.) because it may cause knuckle quality issues.

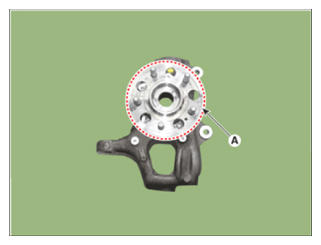

Loosen the hub assembly bolt and then removing the hub assembly (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
