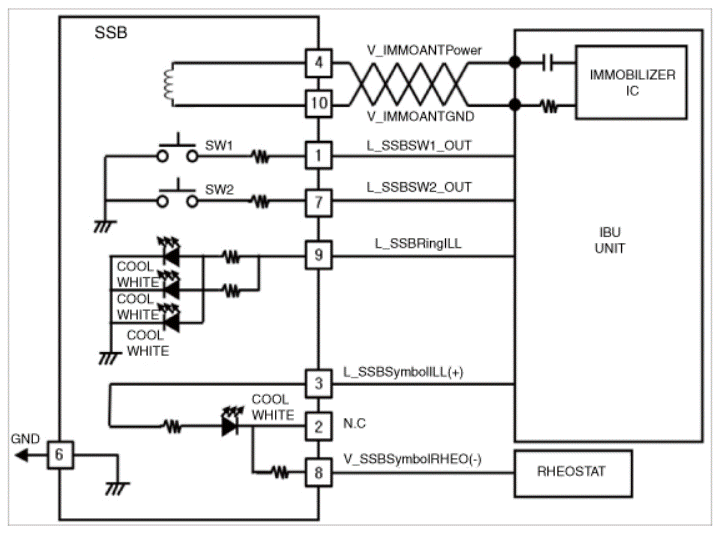

Home >> Genesis >> 2022 >> G70 2.0T, AWD >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Button Engine Start System >> Start-Stop Button >> Schematic Diagrams >> Circuit diagram
