Description & Operation: Description: Sensor
It transmits the driving and road conditions to the ECU in real time by detecting the movement of a vehicle and tires.
| Item | Shape | Function |
|---|---|---|

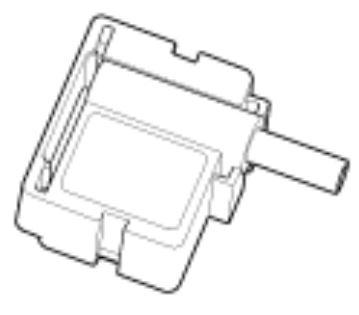

| Body G-sensor | Body motion detection Sky hook damping control (pitch, bounce control) |
|

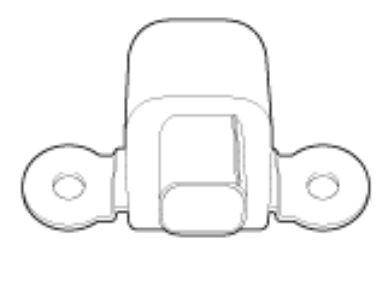

| Wheel G-sensor | Wheel roughness detection Damper velocity estimation |
|
| Steering angle sensor | Estimation Of The Driver's Steering Left/Right acceleration measurements |
|
| Vehicle Signals | CAN Line | Vehicle Speed Throttle position sensor Brake Steering Angle Drive mode switch signal |
