Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Second/Third row seat assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

  3. Remove the rear floor carpet.

    (Refer to Body - "FLOOR CARPET ")

  4. Disconnect the rear curtain unit connector (A).
    G14727335Courtesy of HYUNDAI MOTOR AMERICA

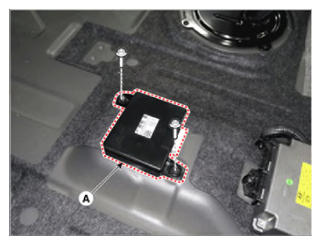

  5. Loosen the mounting nuts and remove the rear curtain unit (A).
    G14727336Courtesy of HYUNDAI MOTOR AMERICA
