Control Unit

  1. Remove the 3rd row seat assembly.

    (Refer to Body - Rear Seat Assembly - "REPLACEMENT " - Third-Row)

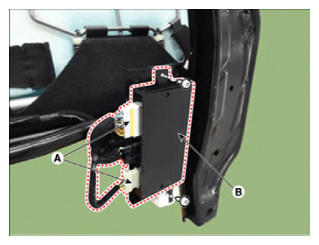

  2. Remove the control unit (B) after disconnecting the connector (A).
    G14723899Courtesy of HYUNDAI MOTOR AMERICA
