Repair Procedures: Replacement
CAUTION:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")
- Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the center pillar lower trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")
- Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
- Remove the accelerator pedal module.
(Refer to Fuel system - "ACCELERATOR PEDAL ")

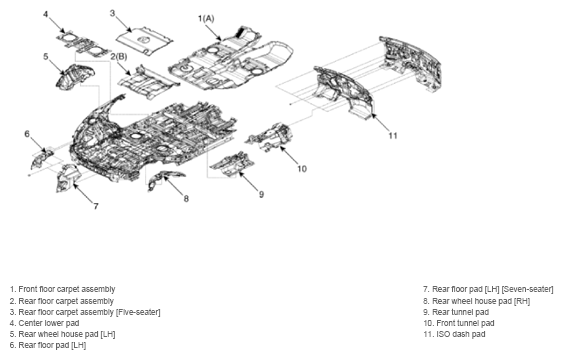

- Remove the front floor carpet assembly (A), and rear floor carpet assembly (B).
- To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
