Repair Procedures: Adjustment
- Place the car on a flat surface and check whether the body and trunk lid are well-aligned.

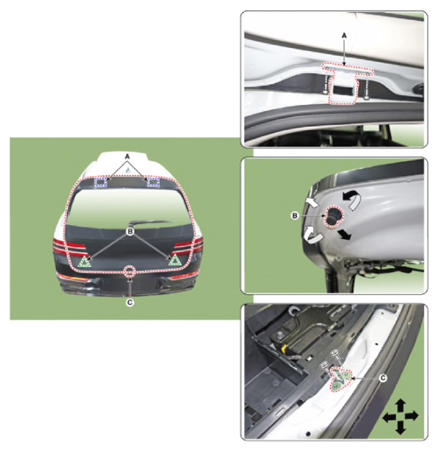

- After loosening the liftgate hinge (A) mounting bolt, adjust the liftgate by moving it up and down or from side to side.
- Adjust the gap between the liftgate and body by turning the liftgate overslam bumpers (B).
- After loosening the liftgate striker (C) mounting bolts, adjust the striker by moving it back and forth or from side to side and then tighten the mounting bolts.
- Make sure the liftgate opens or closes properly.
