Front Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer Body - "Front Bumper Cover")

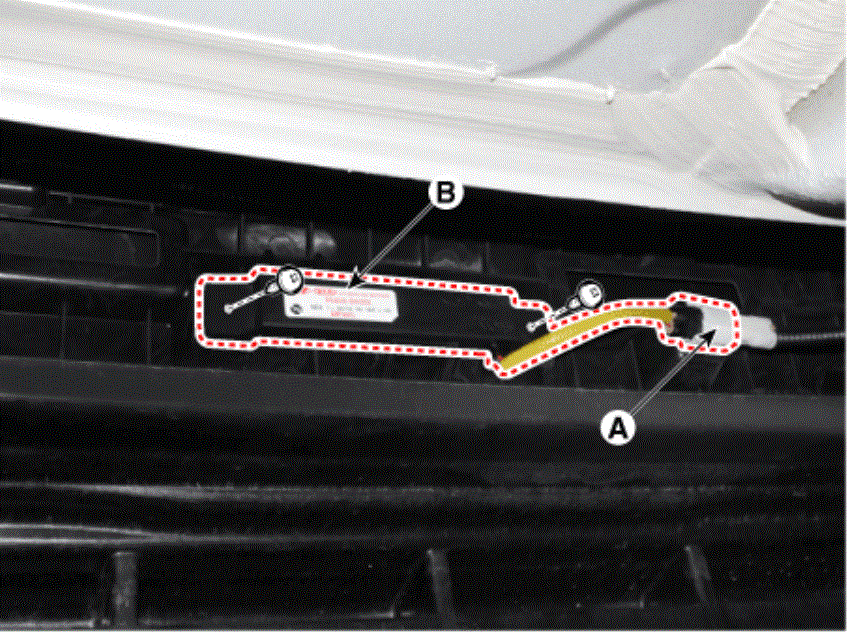

  3. Remove the front antenna (B) after loosening mounting screws and disconnecting the connector (A).
    G14723828Courtesy of HYUNDAI MOTOR AMERICA
