Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

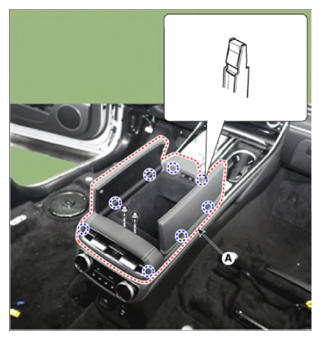

  2. Remove the upper console assembly (A) after loosening mounting bolts.
    G14723766Courtesy of HYUNDAI MOTOR AMERICA

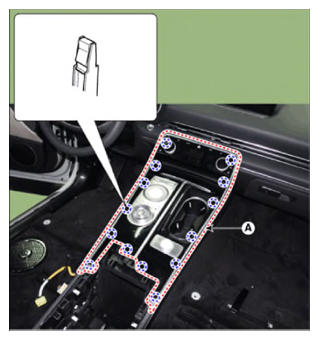

  3. Using a flat-tip screwdriver or remover, remove the console upper cover assembly (A).
    G14723767Courtesy of HYUNDAI MOTOR AMERICA

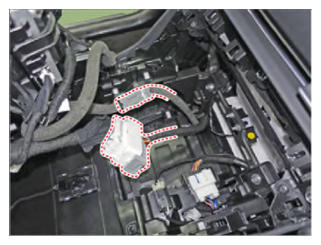

  4. Disconnect the console upper connector.
    G14723768Courtesy of HYUNDAI MOTOR AMERICA

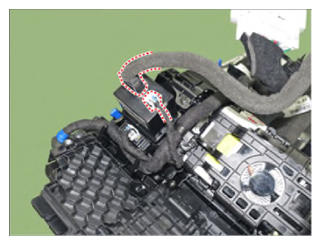

  5. Disconnect the USB connector.
    G14723769Courtesy of HYUNDAI MOTOR AMERICA

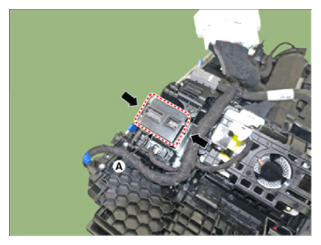

  6. Remove the USB (A) by pushing the fixed clip in the direction of the arrow as lillustration below.
    G14723770Courtesy of HYUNDAI MOTOR AMERICA
