Measuring Resistance
- Remove the cruise control switch.

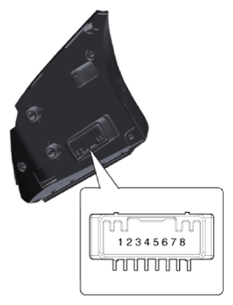

- Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).
| Function switch | Terminal Standard | Terminal Option | Resistance (± 5%) |
|---|---|---|---|
| Paddle Up | 2 - 6 | 8 - 6 | 390Ω |
| Cancel | 2 - 6 | 8 - 6 | 610Ω |
| SET (-) | 2 - 6 | 8 - 6 | 910Ω |
| SET (+) | 2 - 6 | 8 - 6 | 1.38 kΩ |
| Cruise ON/OFF | 2 - 6 | 8 - 6 | 2.13 kΩ |
| SCC | 2 - 6 | 8 - 6 | 7.93 kΩ |
| Paddle Down | 2 - 6 | 8 - 6 | 390Ω |
