Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
  3. Remove the steering wheel.

    (Refer to Steering System - "REPAIR PROCEDURES ")

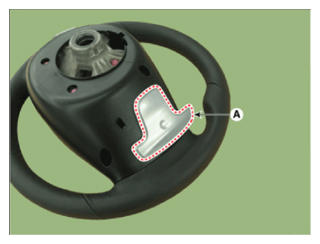

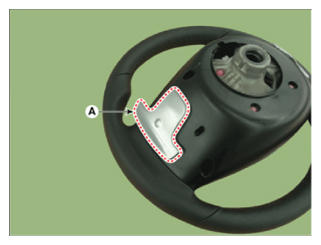

  4. Loosen the mounting screws and remove the paddle shift switch (A).
    G14727794Courtesy of HYUNDAI MOTOR AMERICA
    G14727795Courtesy of HYUNDAI MOTOR AMERICA

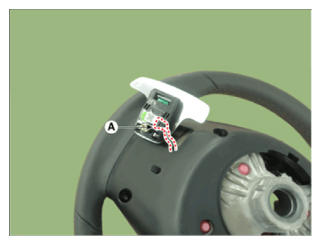

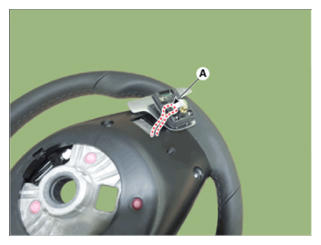

  5. Disconnect the paddle shift switch connector (A).
    G14727796Courtesy of HYUNDAI MOTOR AMERICA
    G14727797Courtesy of HYUNDAI MOTOR AMERICA

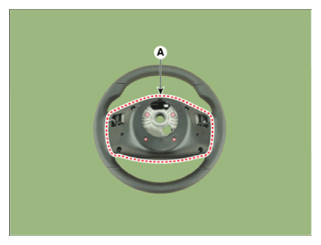

  6. Loosen the mounting screws and remove the lower cover (A).
    G14727798Courtesy of HYUNDAI MOTOR AMERICA

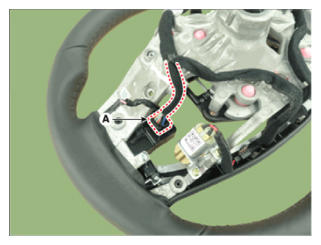

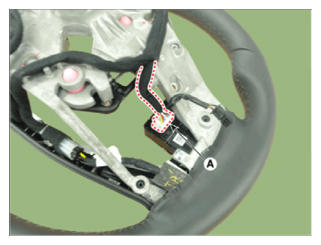

  7. Disconnect the remote control switch connector (A).
    G14727799Courtesy of HYUNDAI MOTOR AMERICA
    G14727800Courtesy of HYUNDAI MOTOR AMERICA

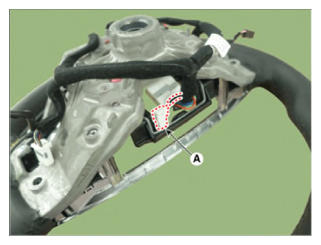

  8. Disconnect the ground connector (A).
    G14727801Courtesy of HYUNDAI MOTOR AMERICA

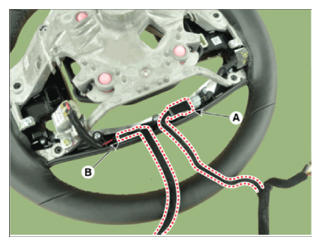

  9. Disconnect the heated steering wheel connector (A) and haptic motor connector (B).
    G14727802Courtesy of HYUNDAI MOTOR AMERICA

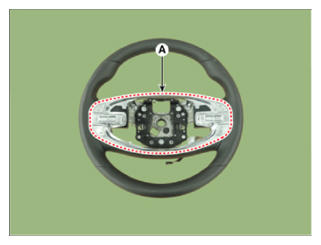

  10. Remove the remote control switch bezel (A).
    G14727803Courtesy of HYUNDAI MOTOR AMERICA

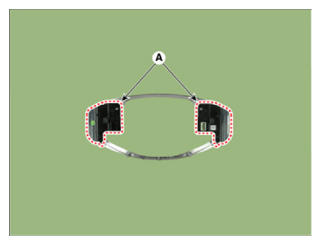

  11. Loosen the mounting screws and remove the remote control switch (A).
G14727804Courtesy of HYUNDAI MOTOR AMERICA
