Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (9 Of 9) >> DTC P2629-00: O2 Sensor Pumping Current Trim Circuit/Open Bank 2 Sensor 1 >> Troubleshooting >> Diagnostic Flowchart

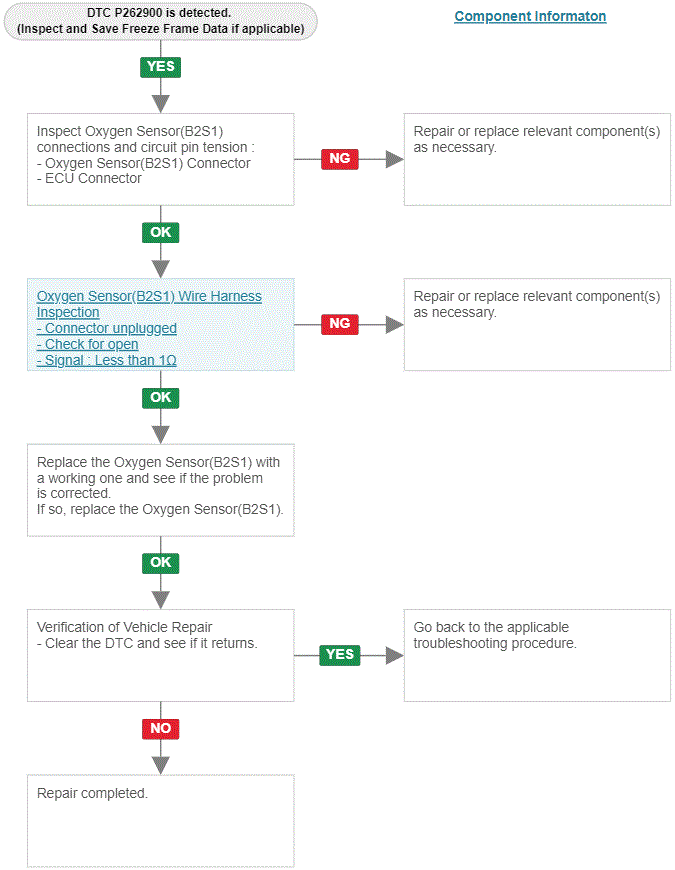

Diagnostic Flowchart

G14853870Courtesy of HYUNDAI MOTOR AMERICA
