Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (7 Of 9) >> DTC P2128-00: Throttle/Pedal Position Sensor/Switch 'E' Circuit High >> Troubleshooting >> Diagnostic Flowchart

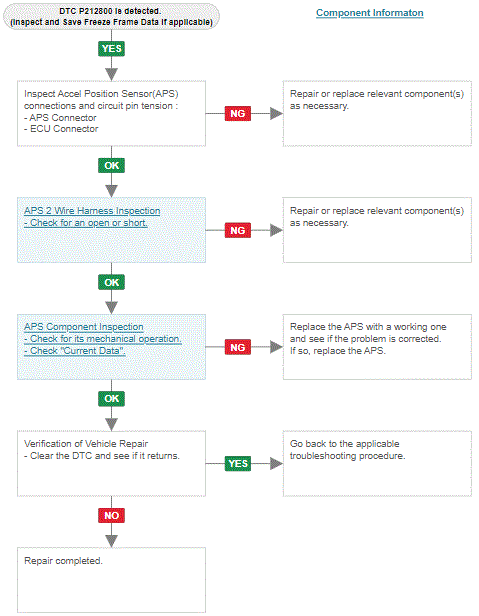

Diagnostic Flowchart

G14853778Courtesy of HYUNDAI MOTOR AMERICA
