Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (3 Of 9) >> DTC P0221-00: Throttle/Pedal Position Sensor/Switch 'B' Circuit Range/Performance >> Troubleshooting >> Diagnostic Flowchart

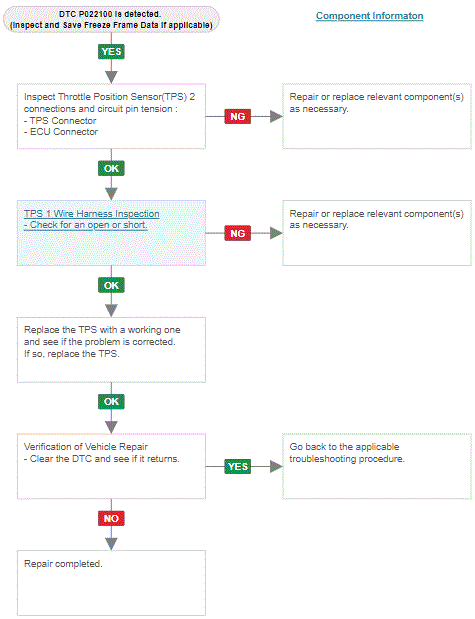

Diagnostic Flowchart

G14853648Courtesy of HYUNDAI MOTOR AMERICA
