Home >> Genesis >> 2021 >> GV80 3.5T Advanced >> Repair and Diagnosis (Single Page) >> Engine Performance >> System >> Engine Control System Diagnosis - 3.5L (3 Of 9) >> DTC P013C-00: O2 Sensor Slow Response - Rich To Lean Bank 2 Sensor 2 >> Troubleshooting >> Diagnostic Flowchart

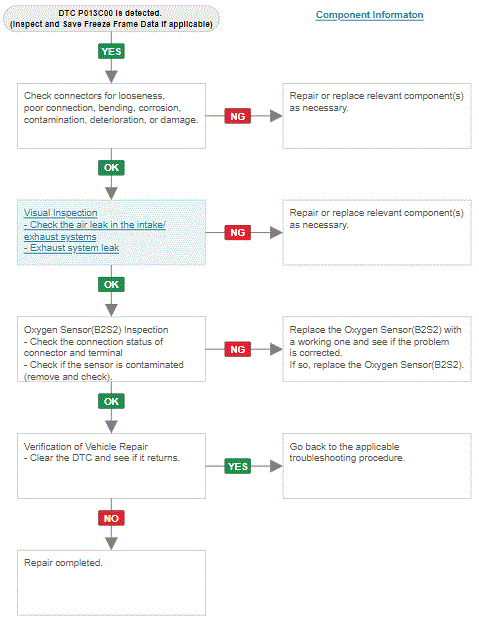

Diagnostic Flowchart

G14853620Courtesy of HYUNDAI MOTOR AMERICA
