Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

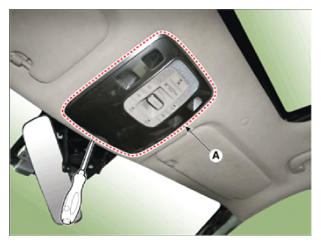

  2. Using a flat-tip screwdriver or remover and remove the overhead console lamp (A).
    G14727204Courtesy of HYUNDAI MOTOR AMERICA
  3. Disconnect the overhead console lamp connector.
    G14727205Courtesy of HYUNDAI MOTOR AMERICA
