Corrective Action

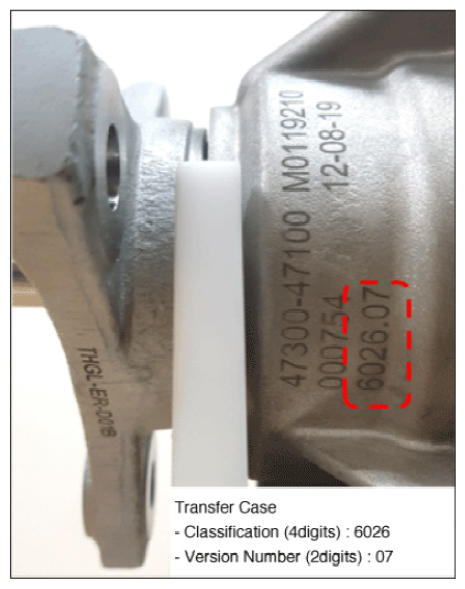

1. Check the classification (4 digits) and version number (2 digits) which is carved on the transfer case.
2. Enter the "HW Characteristics" on GDS S/W Management.
3. Clear the DTC with GDS. (* DTC will keep setting, before entering the classification)

   Courtesy of HYUNDAI MOTOR AMERICA

"History"

• The DTC is caused by a simple mistake. Clear the DTC.
