Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.

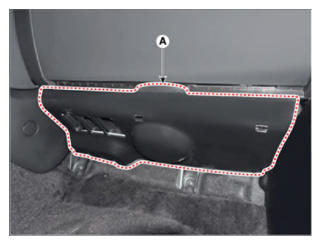

  2. Remove the passenger side crash pad under cover (A).
    G14727539Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the crash pad center panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD CENTER PANEL ")

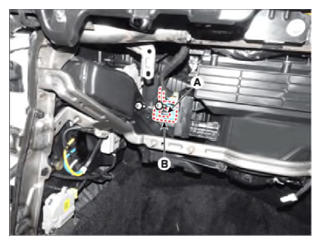

  4. Disconnect the connector (A), loosen the mounting screws and remove the power mosfet (B).
    G14727540Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
