Repair Procedures: Inspection

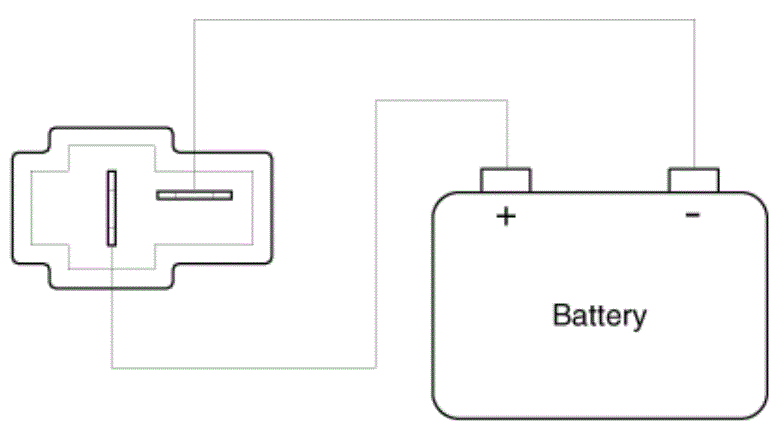

  1. Connect the battery voltage and check the blower motor rotation.
    G14727535Courtesy of HYUNDAI MOTOR AMERICA
  2. If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.
  3. Replace the blower motor if it is proved that there is a problem with it.
