Engine Coolant Temperature Sensor (ECTS) #2 - Electronic Water Pump side
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the Air Cleaner Assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

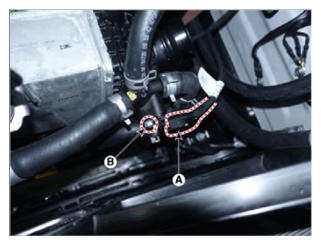

- Disconnect the engine coolant temperature sensor connector (A).
- After removing the installation bolts (B), remove the engine coolant temperature sensor.
Tightening torque:
7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb-ft)
