Repair Procedures: Replacement

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front seat assembly.
(Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

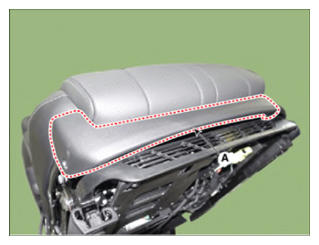

Loosen the mounting screws and remove the front seat shield front cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front seat outer shield cover.

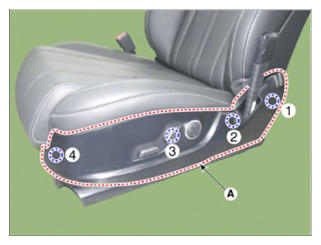

1. Using a screwdriver or remover and remove the rear hook (1).
2. Remove the anchor pretensioner side hook (2) using a screwdriver or remover.
3. Lift the switch side hook (3) upward and remove it.
4. After removing the front (4) screw, remove the front seat outer shield cover (A).
NOTE:
- Front Seat Outer Shield When removing the cover, pay attention to the removal order and direction.
- Be careful not to damage the hooks and brackets.
Courtesy of HYUNDAI MOTOR AMERICA

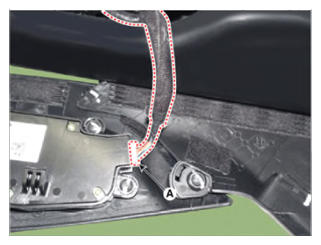

Press the lock pin and separate the front seat power switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
