Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

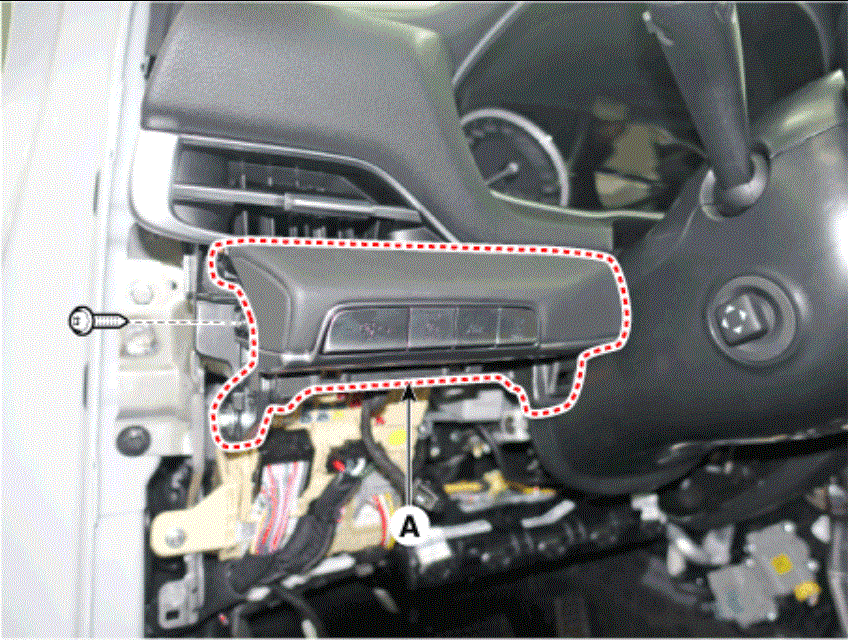

  3. Loosen the mounting screw and remove the crash pad switch assembly (A).
    G14727637Courtesy of HYUNDAI MOTOR AMERICA

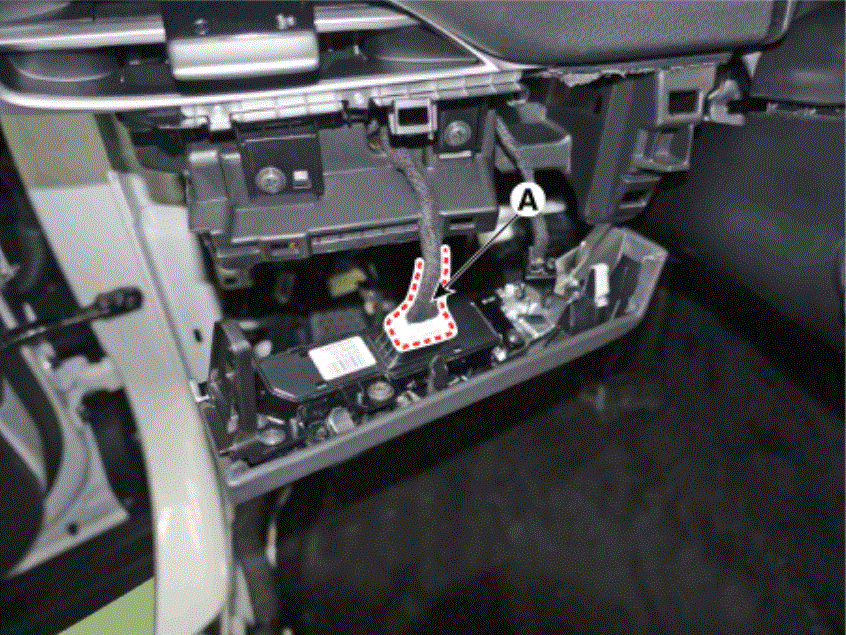

  4. Disconnect the crash pad switch assembly connector (A).
G14727638Courtesy of HYUNDAI MOTOR AMERICA
