Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Turn the steering wheel so that the front wheels are placed in the straight ahead position.
  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

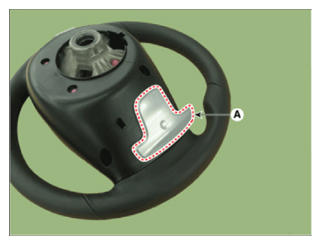

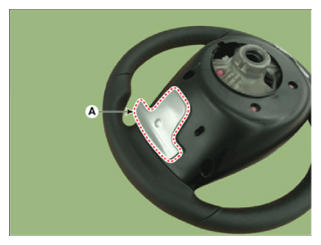

  4. Loosen the mounting screws and remove the paddle shift switch (A).
    G14727691Courtesy of HYUNDAI MOTOR AMERICA
    G14727692Courtesy of HYUNDAI MOTOR AMERICA

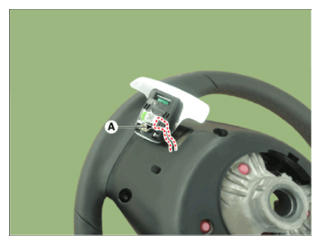

  5. Disconnect the paddle shift switch connector (A).
    G14727693Courtesy of HYUNDAI MOTOR AMERICA
    G14727694Courtesy of HYUNDAI MOTOR AMERICA

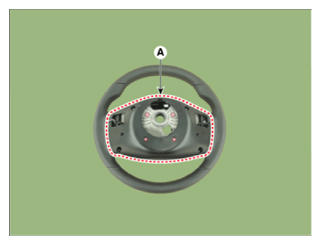

  6. Loosen the mounting screws and remove the lower cover (A).
    G14727695Courtesy of HYUNDAI MOTOR AMERICA

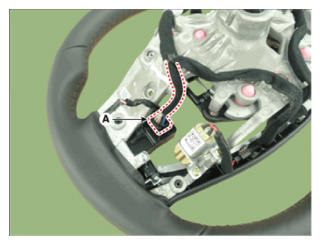

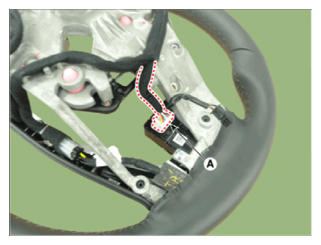

  7. Disconnect the remote control switch connector (A).
    G14727696Courtesy of HYUNDAI MOTOR AMERICA
    G14727697Courtesy of HYUNDAI MOTOR AMERICA

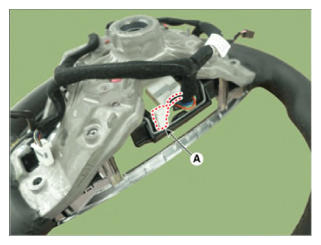

  8. Disconnect the ground connector (A).
    G14727698Courtesy of HYUNDAI MOTOR AMERICA

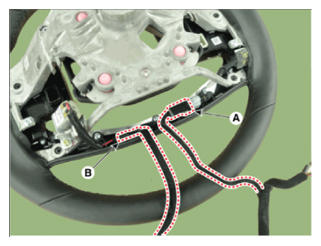

  9. Disconnect the heated steering wheel connector (A) and haptic motor connector (B).
    G14727699Courtesy of HYUNDAI MOTOR AMERICA

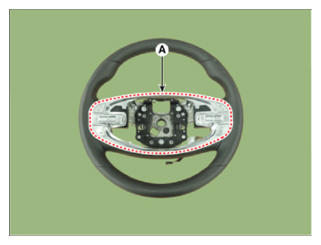

  10. Remove the remote control switch bezel (A).
    G14727700Courtesy of HYUNDAI MOTOR AMERICA

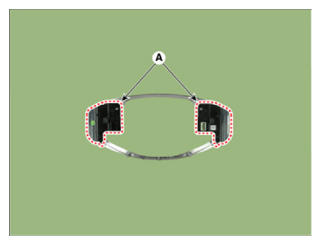

  11. Loosen the mounting screws and remove the remote control switch (A).
    G14727701Courtesy of HYUNDAI MOTOR AMERICA
