Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

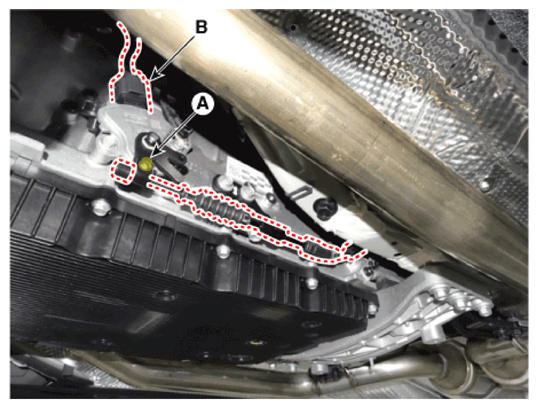

  2. Disconnect the parking switch connector (B) and release the fastener (A) to disconnect the cable from the parking release lever.
    G14237581Courtesy of HYUNDAI MOTOR AMERICA

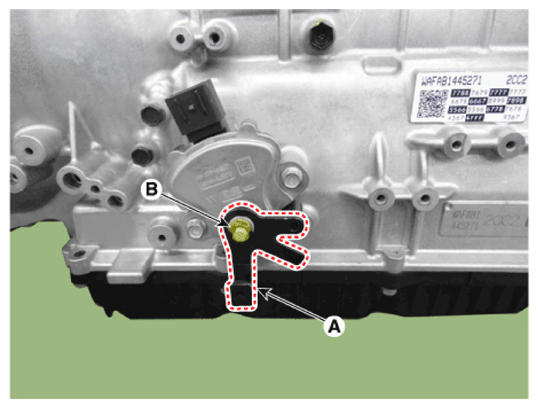

  3. Remove the parking release lever (A) after removing the nut (B).
    G14237582Courtesy of HYUNDAI MOTOR AMERICA
  4. Using the transmission jack, support the oil pan of the transmission.

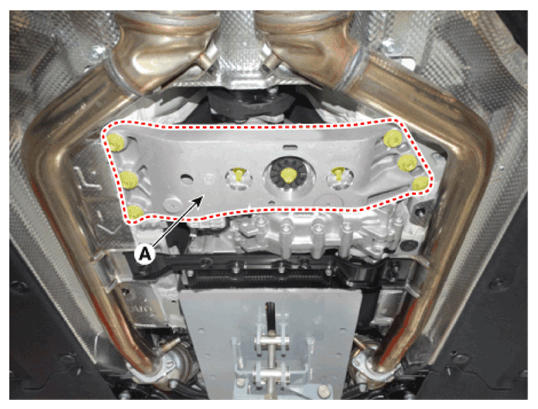

  5. Remove the cross member (A).
  6. Jack falls down to remove the parking switch.
    G14237583Courtesy of HYUNDAI MOTOR AMERICA

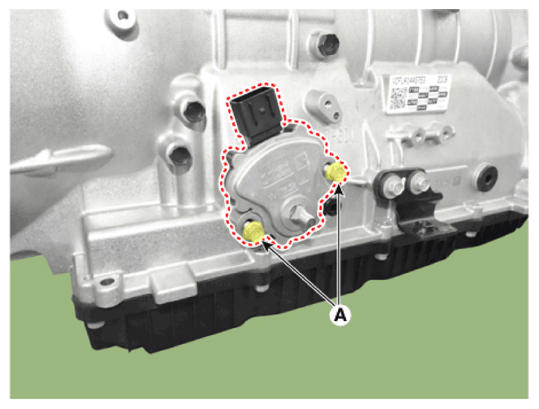

  7. Remove the parking switch after removing the bolts (A).
G14237584Courtesy of HYUNDAI MOTOR AMERICA
