Repair Procedures: Installation

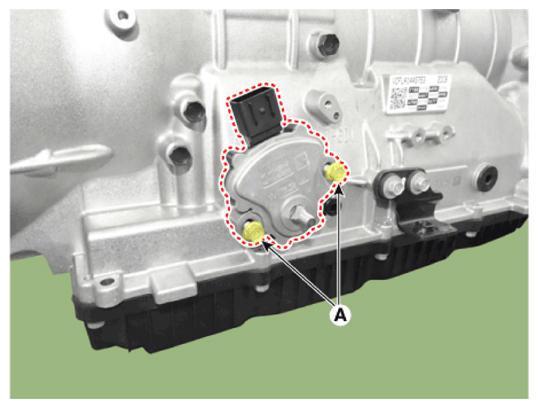

- Install the parking switch. When installing, tighten the inhibitor assembly mounting bolts (A) loosely to allow any necessary adjustments to be made.
- Install the parking release lever (B).

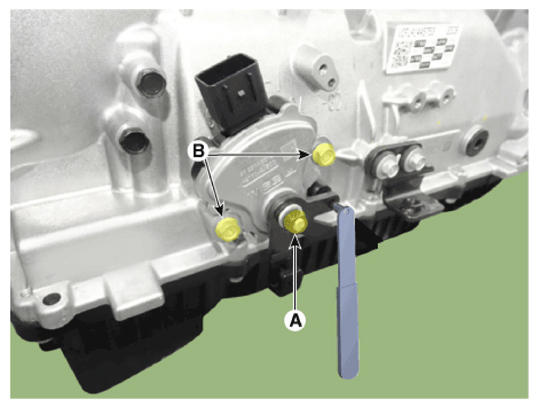

- Install the SST No.:09480-D2100 or 0.1969 in. (5 mm) bolt after setting parking release lever (B) in the "P".
- Tighten mounting nut (A) of the parking release lever to the specified torque.
Tightening torque:
13.7 - 17.7 N.m (1.4 - 1.8 kgf.m, 10.1 - 13.0 lb-ft)
- Tighten the bolt (B) to the specified torque.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Remove the SST No.:09480-D2100 or 0.1969 in. (5 mm) bolt.

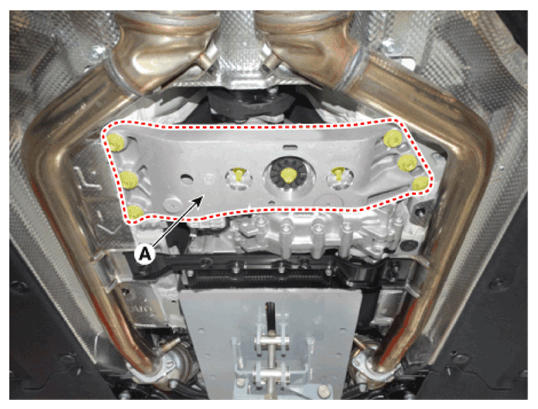

- Install the cross member (A).

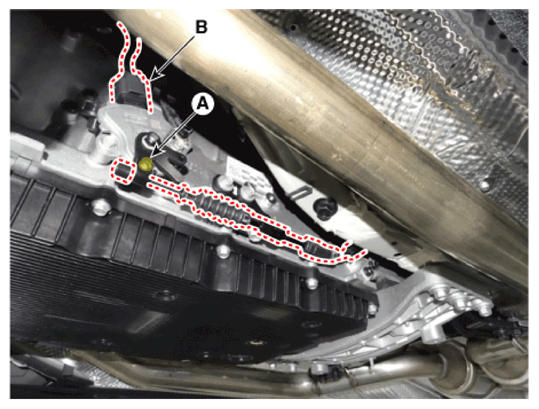

- Install the parking release cable by installing the fastener (A).
- Connect the inhibitor switch connector (B).
- Connect the negative (-) battery cable.
