Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ")

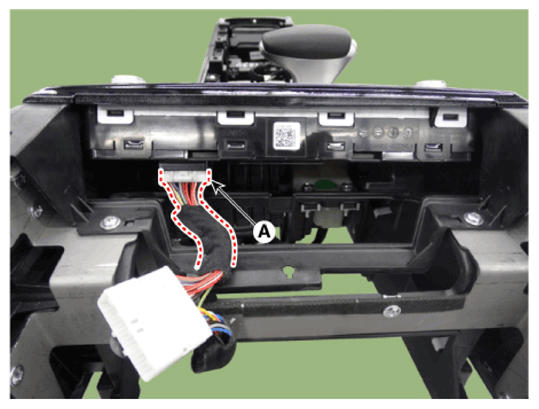

  3. Disconnect the heater control unit connector (A).
    G14237572Courtesy of HYUNDAI MOTOR AMERICA

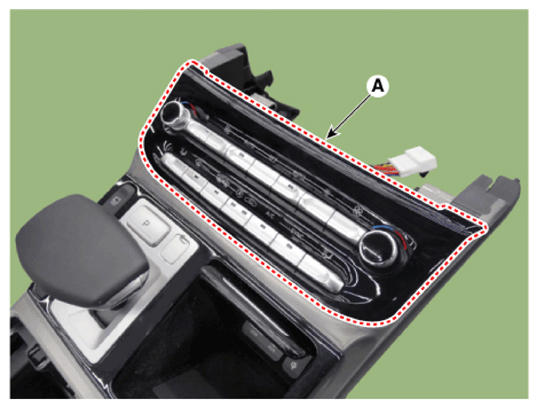

  4. Remove the heater control unit (A).
    G14237573Courtesy of HYUNDAI MOTOR AMERICA

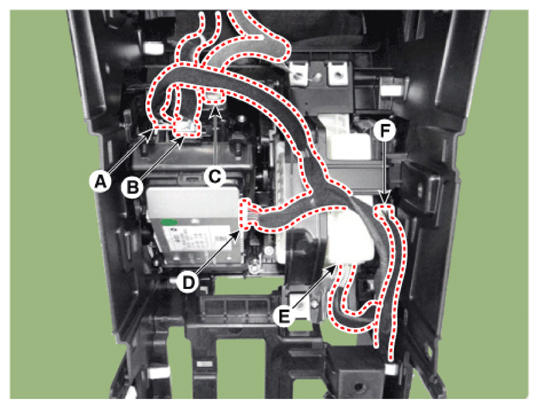

  5. Disconnect the connector (A), (B), (C), (D), (E), (F).
    G14237574Courtesy of HYUNDAI MOTOR AMERICA

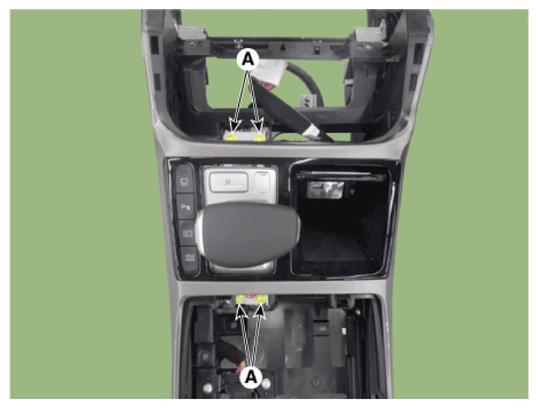

  6. Remove the mounting bolts (A) of the electronic shift lever.
    G14237575Courtesy of HYUNDAI MOTOR AMERICA

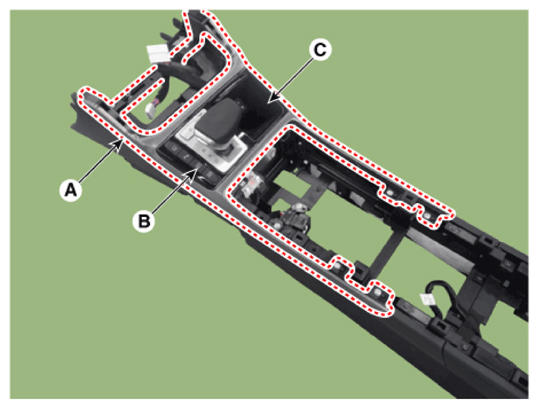

  7. Remove the electronic shift lever (B), WPC (C) with the garnish (A).
    G14237576Courtesy of HYUNDAI MOTOR AMERICA

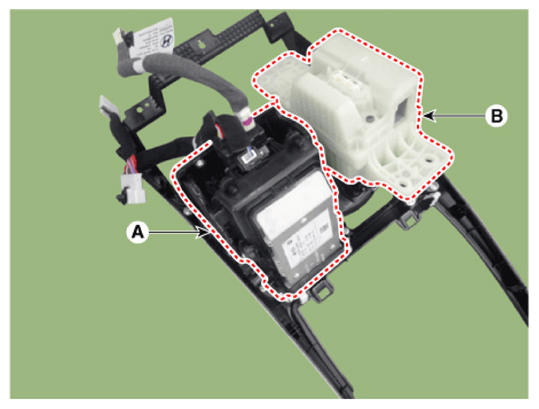

  8. Remove the electronic shift lever (A), WPC (B) from the garnish.
G14237577Courtesy of HYUNDAI MOTOR AMERICA

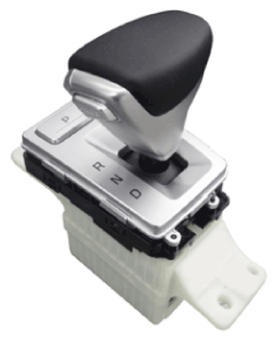

G14237578Courtesy of HYUNDAI MOTOR AMERICA
