Repair Procedures: Removal

  1. Remove valve core and deflate the tire.
  2. Remove the bead area in the side of the tire from the wheel using the tire changing machine.

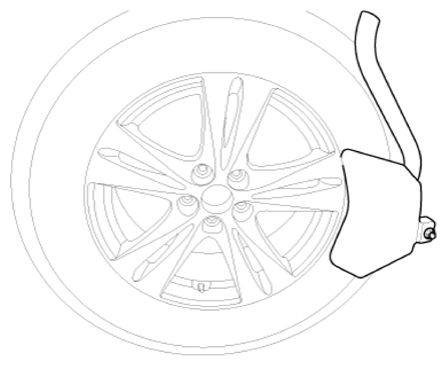

    G14210009Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • The tire bead should be broken approx. 90° from the valve side of the wheel. The bead breaker should not be set too deep.
    • Avoid tire/tool contact with the valve on dismount.
    • Dismount should end near the valve.
  3. Rotate the wheel clockwise.

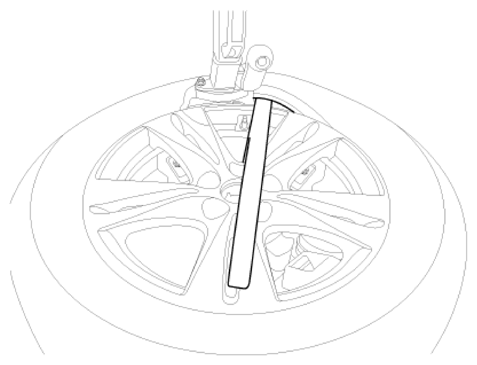

G14210010Courtesy of HYUNDAI MOTOR AMERICA

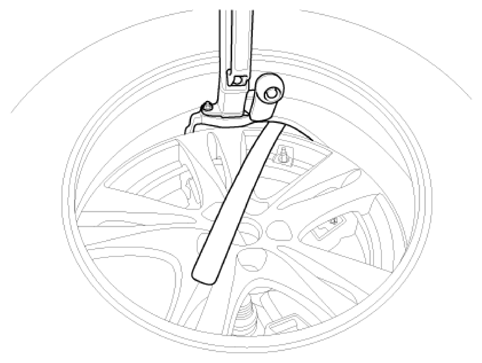

G14210011Courtesy of HYUNDAI MOTOR AMERICA
