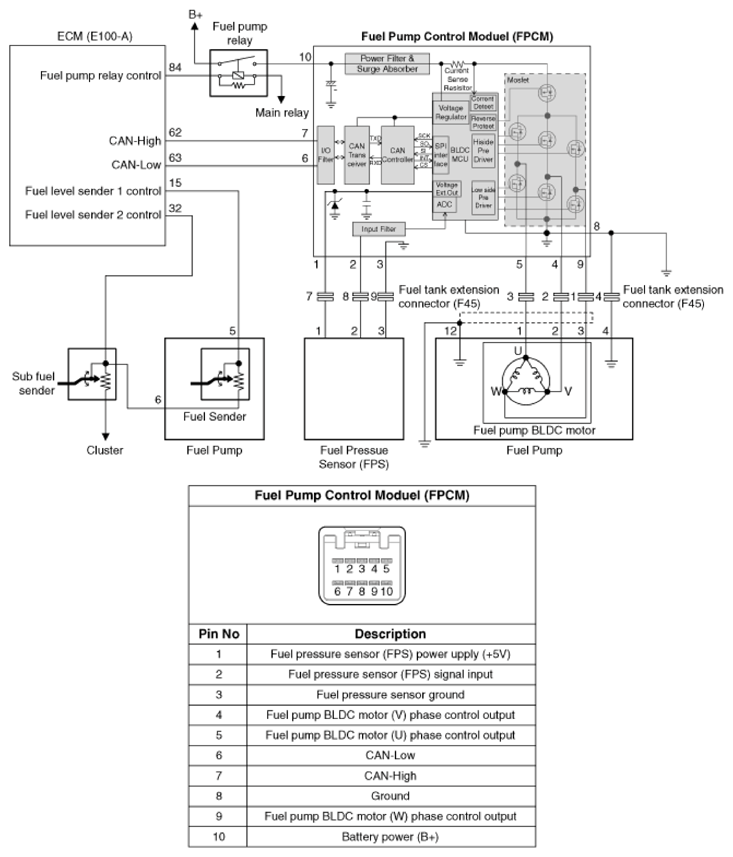

Home >> Genesis >> 2021 >> G90 5.0 Ultimate, RWD >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 5.0L >> Fuel Pump Control Module FPCM >> Schematic Diagrams >> Circuit Diagram
