Fuel Pressure Sensor FPS: Specifications: Specification

Pressure (kPa)	Output Voltage (V)
50	0.3
600	2.5
1100	4.5

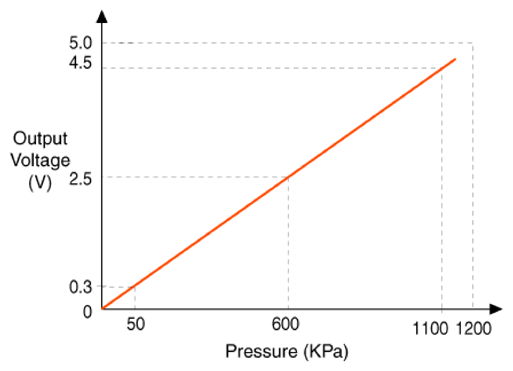

G14237200

Courtesy of HYUNDAI MOTOR AMERICA
