Front Fuel Line

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn the ignition switch OFF and disconnect the negative (-) battery terminal.

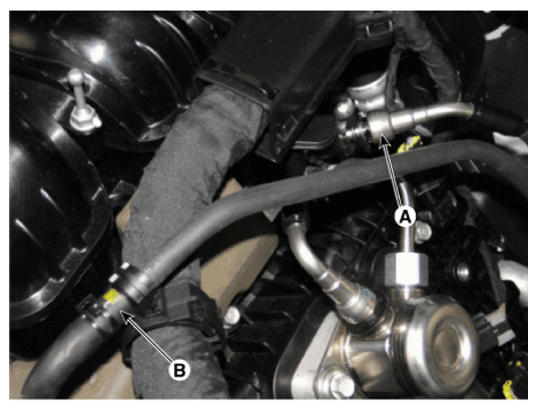

  3. Disconnect the fuel feed tube quick-connector (A).
  4. Disconnect the vapor hose (B) which is connected from the PCSV.
    G14237204Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle.
  6. Remove the front-left wheel & tire and wheel house cover.

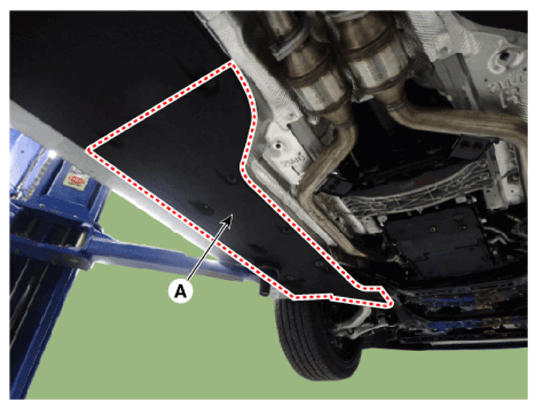

  7. Remove the front-left side under cover (A).
    G14237205Courtesy of HYUNDAI MOTOR AMERICA

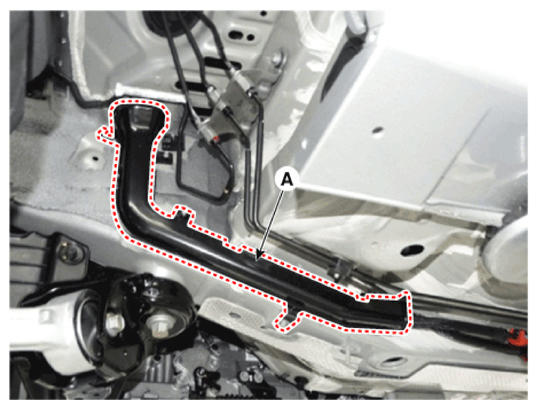

  8. Remove the fuel line protector (A) after removing mounting nuts.
    G14237206Courtesy of HYUNDAI MOTOR AMERICA

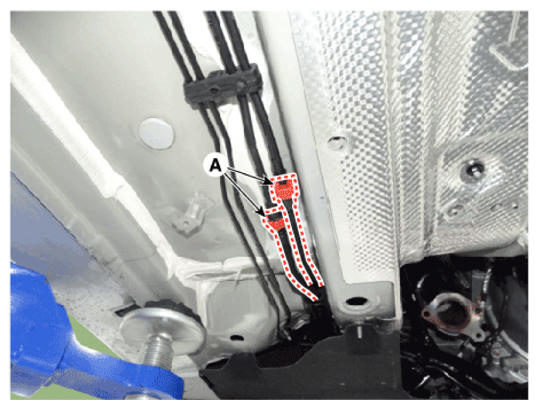

  9. Disconnect the front vapor and fuel tube line quick-connector (A).
    G14237207Courtesy of HYUNDAI MOTOR AMERICA

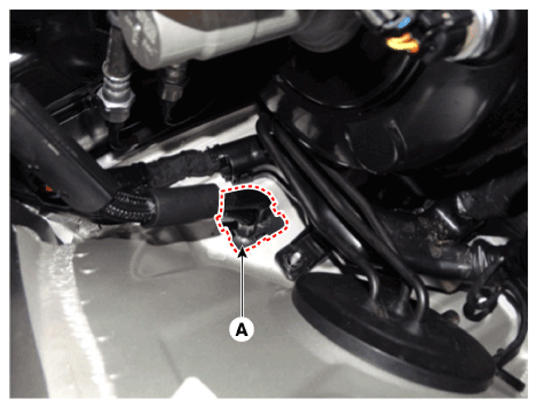

  10. Remove the front vapor and fuel feed tube bracket (A).
    G14237208Courtesy of HYUNDAI MOTOR AMERICA

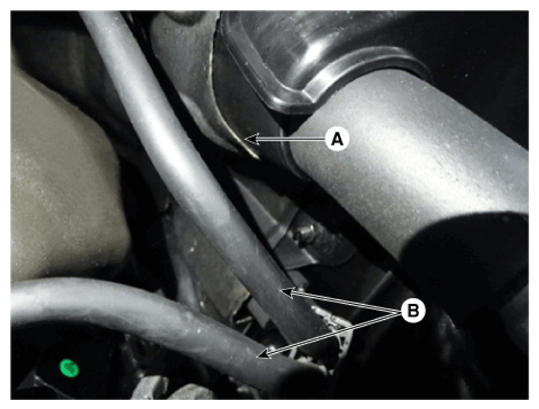

  11. Remove the noise barrier (A) after loosening the mounting bolt and nut.
  12. Remove the front vapor and fuel tube line (B).
G14237209Courtesy of HYUNDAI MOTOR AMERICA
