Components And Components Location: Components: AWD

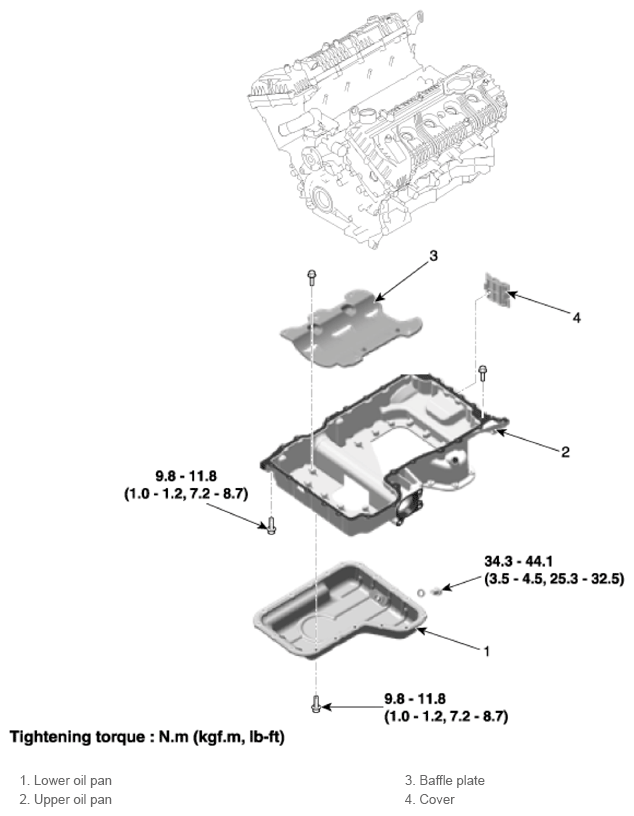

Fig 1: Oil Pan Components Location With Torque Specification (AWD)

G14236760

Courtesy of HYUNDAI MOTOR AMERICA
