Components And Components Location: Components: 2WD

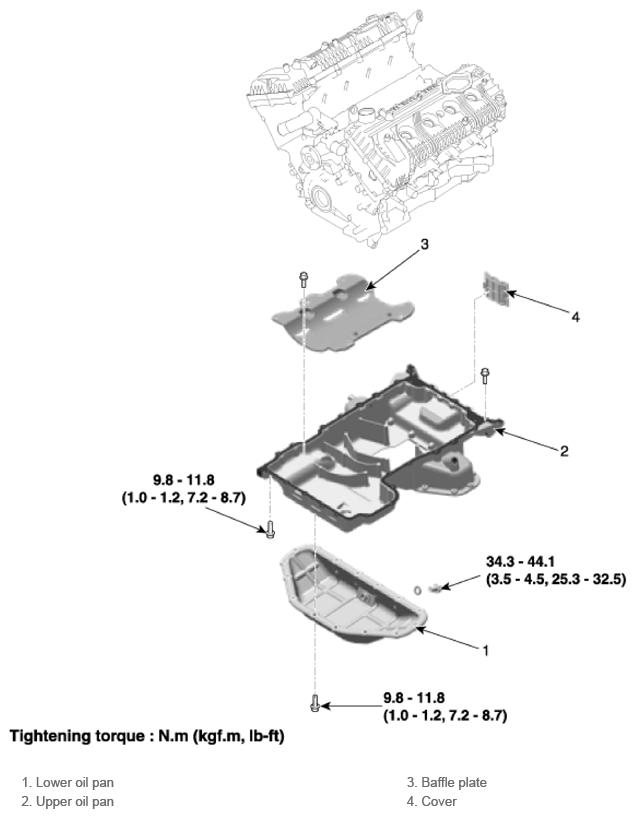

Fig 1: Oil Pan Components Location With Torque Specification (2WD)
G14236759Courtesy of HYUNDAI MOTOR AMERICA
