Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

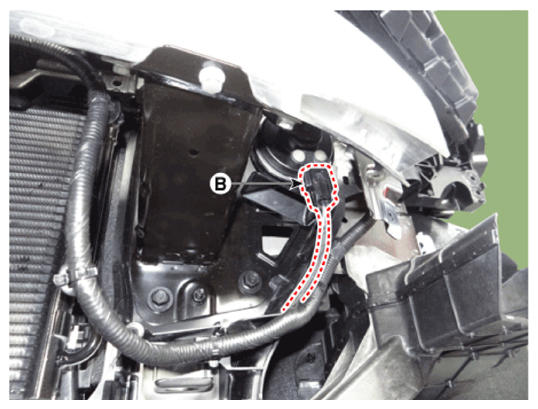

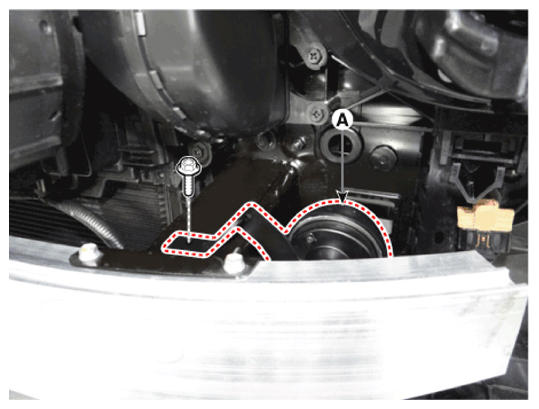

  2. Remove the high-pitch horn (A) after disconnecting the connector (B) and loosening the mounting bolts.
    G14235773Courtesy of HYUNDAI MOTOR AMERICA
    G14235774Courtesy of HYUNDAI MOTOR AMERICA

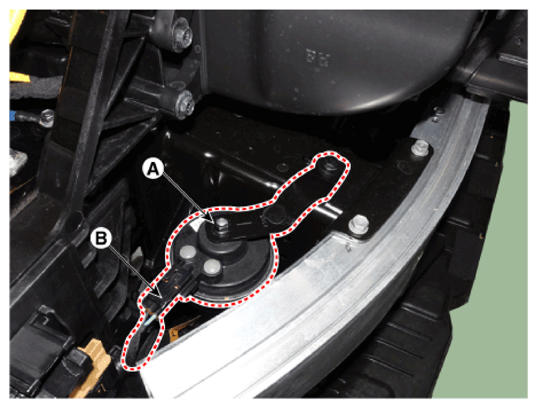

  3. Remove the low-pitch horn (B) after disconnecting the connector (A) and loosening the mounting bolts.
G14235775Courtesy of HYUNDAI MOTOR AMERICA
