Repair Procedures: Removal

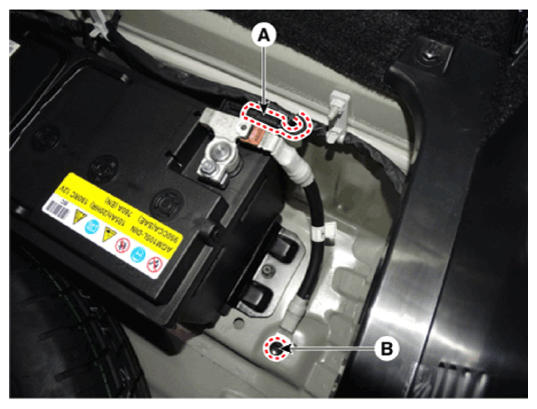

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolts (B).
G14236948Courtesy of HYUNDAI MOTOR AMERICA
