SAS Calibration

  1. Connect the GDS to the data link connector located underneath the dash panel.
  2. Make a selection and operate the process according to the instructions on the GDS screen.

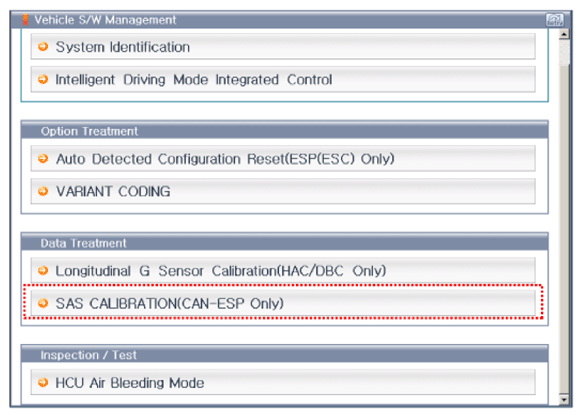

G14210350Courtesy of HYUNDAI MOTOR AMERICA

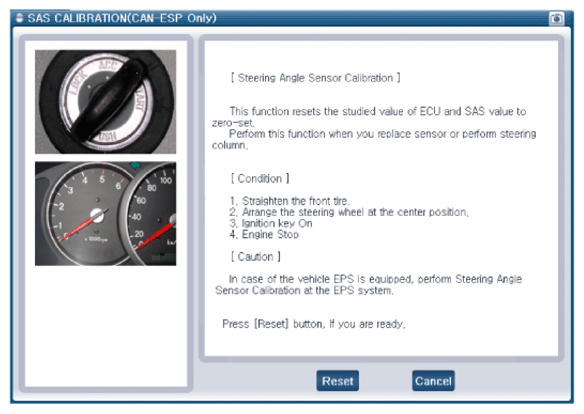

G14210351Courtesy of HYUNDAI MOTOR AMERICA

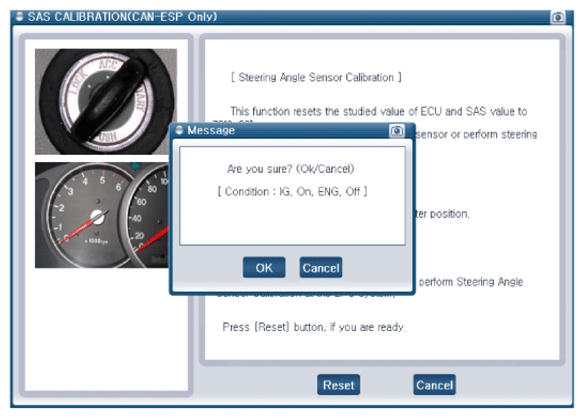

G14210352Courtesy of HYUNDAI MOTOR AMERICA

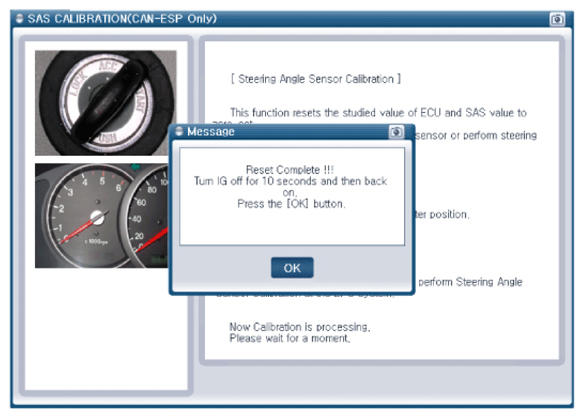

G14210353Courtesy of HYUNDAI MOTOR AMERICA
